GCP Silo Gas Cleaning DDS Fiberglass Industrial Dust Collector Filter Bags

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

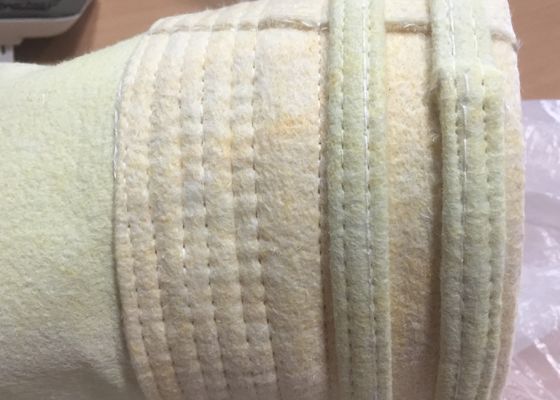

GCP Silo Gas Cleaning DDS Fiberglass Industrial Dust Collector Filter Bags

GCP Silo Gas Cleaning DDS Fiberglass Industrial  Dust Collector Filter Bags
GCP Silo Gas Cleaning DDS Fiberglass Industrial  Dust Collector Filter Bags

Large Image :  GCP Silo Gas Cleaning DDS Fiberglass Industrial Dust Collector Filter Bags Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: FMS 9806
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: Fiberglass Fiber+P84 Fiber Scrim: Fiberglass Woven High Tensile Strength
Bag Size: DN 130x6000 Mm Work Temp.: 100-300 Degree
Air Permeability: 15-30 M3/m2.m Application: 320-5500 M3 Blast Furnace Dry GCP Plant
Name: Dry GCP Filter Bag Filtration Efficiency: < 5mg/Nm3
Life: 12-18 Months Treatment: PTFE Dipping And Coating
High Light:

GCP silo Dust Collector Filter Bags

,

DDS Dust Collector Filter Bags

,

Fiberglass industrial dust collector bags

FMS 9806 Fiberglass needle punched fabric DN 130x6000mm dust filter bag





FMS 9806 type dust filter bag is the most suitable material used in blast furnace dry gas cleaning system. it can be worked in different blast furnace dry GCP plant, 350-5000 m3 BF dry GCP.



This kind fabric is needle punched by 3-4 fibers together, it has high temperature repellent, good air permeability, easy to take offer cake advantage. Now widely used in dry GCP system.



The detail description of filter medium



For reducing resistance of filter media, except the special technology for laying the fiber , we also choose different diameter fiber to process, let’s the fabric can be graded structure, on the fabric surface ,there is super fine fiber, to increase the fabric filtration precision ,anti-acid and alkali ,and en-length the life of fabric. In the actual application , the efficiency as same as membrane coating fabric , but resistance is more lower.



1) Nonwoven fabric cross section choose graded structure , fiber diameter from thin to thick, there are 4 layers, surface super fine fiber layer--super fine fiber---scrim—thick fiber layer. The fiber more thin, the ventilation channel more compact.



Working condition

Application   3x 1080 m3 volume blast furnace in iron making plant
 Ash cleaning system   offline ,pulse ash removal
 Woring temperature   130-260 degree contiune
 peak temperature   300 degree instant
 Filtration speed   < 0.6 m/min
 outlet dust demand   < 5mg/Nm3
 Diameter of the tube plate    DN 135mm
 Filter media  FMS 9806  Superfine fiberglass and P84 compounded fabric
 Treatment  PTFE membrane,heat setting
  Bag size   DN130X6000 mm



Filter fabric structure

From up( face to ash) to down

Surface: Polyamides+ Fiberglass layer

 fiber dipping and PTFE coating

Main part: Polyamides + Fiberglass layer

Scrim: high tensile fiberglass woven fabric

Post surface: Polyamides +Fiberglass layer



2) Learning from the technology of membrane fabric.



We change the same diameter fiber to different diameter fiber, then blended together, turn the traditional filter media to graded structure filter media.

The method of filtration from “ surface layer +deep layer” to “surface layer” only. The super fine fiber layer can resistance smaller particles, the nonwoven fabric surface will be more compact, and easy to remove ash cake.



Surface filtration (b)surface +deep layer filtration (c) surface layer filtration



(1) Graded structure filter media

(2) traditional filter media

(3) Suitable filter media for India Blast furnace



While we visited and communicated with many India blast furnace, we found the dry GCP is most popular in small volume blast furnace ,less than 1000m3 .



China has full experiences in the operation of dry GCP ,and the filter bags are very maturity in operation.

FMS® is the first stage filter bags in dry GCP coming with the projects, we here come to introduce this kind material to you again and solve the filtration problem during operation.





The special Applications



Blast furnace Dry GCP plant gas cleaning

Blast fuance volume: 250m3-5500m3

GCP plant : Dry

Dust silos No.s: 8-24 sets

Bag filter size: DN 130x6000mm& DN 160x8000mm length

Working temp.: 100-300 degree C

Life: 12-18 months

Customers: Sinosteel, MCC , JSW, Baosteel,JSPL, and so on.



GCP Silo Gas Cleaning DDS Fiberglass Industrial  Dust Collector Filter Bags 0
