Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Chemical Fibers | Scrim: | 100% Chemical Scrim |
|---|---|---|---|
| Bag Size: | DN 130x 6000 Mm | Work Temp.: | 260 Degree |
| Air Permeability: | 15-30 M3/m2.m | Application: | All Kinds Dust Collector |
| Name: | High Temperature Resistance Filter Bag | Filtration Efficiency: | < 20mg/Nm3 |
| Life: | 36 Months | Treatment: | PTFE Dipping And Coating |
| High Light: | industrial dust collector bags,polyester filter bag |
||

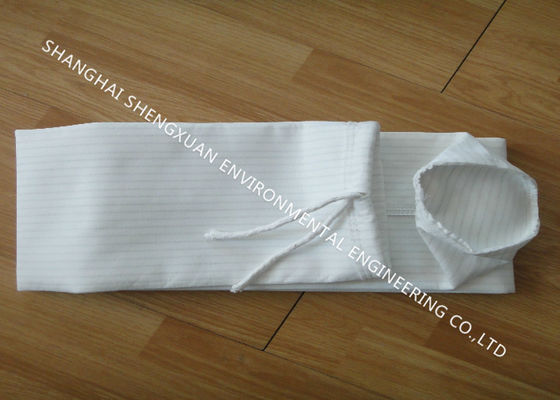

Polyester, PPS, Nomex,PP and P84 Dust collector filtration non woven filter bag
Dust Removal filtration bag
Beause every dust filter has its own features and filter system parameters,select the filter medium must consider the following property,dust remover mechanisim, such as cleaning maner,instparameters:
temperature,moisture,dust,gas,chemical properties,dust diameter,gas chemical lations,etc.In general,the dust remove filter bag is used for industrial wasted gas filtration powder dust fitration,useful dust,high temperature gas dust removal,etc.for various kindsof dust removal equipment filter.
For dust removal filter bag.specifications diameter (mm): 100,120,125,130,150 ,180,250,
length: no limit;Special specifications can be customized.
The filter material used for the bag.should notonly condiderthe materials chemical property,also need to consider the characteristics of dust.Choosing fiter.material, reated by different physical and chemical methods toachieve the goodeffectsuchassingeing andinferiorsmoothtreatm antistatic,oilandwater proofossingaingashatmndflaminating processingsurfcoatin treatment.These processing will greatly increase the dustbag fitering effect and quality.
How to choose the filter bag ?
The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Test Item & Test Standard
| SL.No. | Item | Test Standard |
| 1 | Area Weight | FZ/T60003-91 |
| 2 | Air Permeability | GB/T5453-1997 |
| 3 | Tensile Strength | GB/T3923.1-2013 |
| 4 | Elongation | GB/T3923.1-2013 |
| 5 | Burst | GB/7742.1-2005 |
| 6 | Liquid Repellent | GB/4745-2012 |
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Service
Provide bag installation service, equipped with special instruments and trained professionals.
Provide follow-up service, maintain and direct the operation during run time.
When problem occurs,we will go to site within 24 hours to survey ,analyze and solve the problem.
