Home ProductsDust Collector Filter Bags

Reverse Fiberglass Dust Collector Filter Bags 280 Degree

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

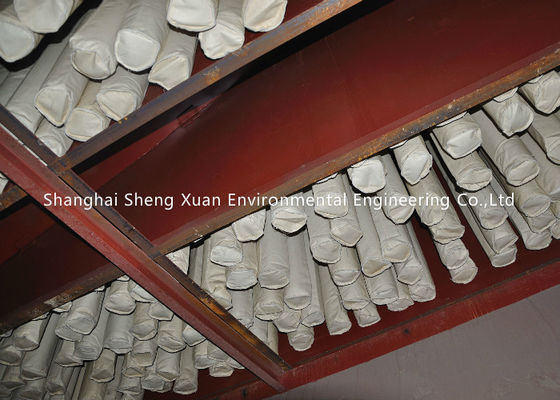

Reverse Fiberglass Dust Collector Filter Bags 280 Degree

Reverse Fiberglass Dust Collector Filter Bags 280 Degree
Reverse Fiberglass Dust Collector Filter Bags 280 Degree Reverse Fiberglass Dust Collector Filter Bags 280 Degree

Large Image :  Reverse Fiberglass Dust Collector Filter Bags 280 Degree Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: DN300X10000
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: Fiberglass Filter Fabric Scrim: 100% Fiberglass Woven Fabric Scrim
Bag Size: DN 300x 10000mm Work Temp.: 280 Degree
Air Permeability: 15-30 M3/m2.m Application: All Kinds Pulse Dust Collectors
Name: Fiberglass Dust Filter Bag Filtration Efficiency: < 20mg/Nm3
Life: 12 Months Treatment: PTFE Dipping And Coating
High Light:

Reverse Fiberglass Dust Filter Bags

,

280 Degree Dust Filter Bags

,

Woven Scrim Dust Filter Bags

Reverse dust collector filter bag



Austin Filter offers a range of fabrics and finishes to reduce the effect of sparks, provide resistance to high-temperature environments, provide resistance to acidic gases, and provide longer bag life. Ask us about our ePTFE membrane laminates, spark resistant, and acid-resistant (AR) finishes.

For the steel industry, we offer:



• Reverse Air Filter Bags
• Pulse Jet Dust Collector Bags
• Cartridge Filters



How to choose the filter bag ?





The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.



The Factors that affecting the selection of the filter medium



The Select Indication of the Filter medium



A. Temperature

B. Chemical Property

C. Concentration of the dust content

D. Filter Gas Speed



Test Item & Test Standard

SL.No. Item Test Standard
1 Area Weight FZ/T60003-91
2 Air Permeability GB/T5453-1997
3 Tensile Strength GB/T3923.1-2013
4 Elongation GB/T3923.1-2013
5 Burst GB/7742.1-2005
6 Liquid Repellent GB/4745-2012



Post Treatment For Filtering Materials



Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment



Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days



Shipping way & Loading Port :



By sea / air / express



Shanghai / Ning Bo/Tianjin



Applications:

Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.



Technical Service &support



Provide Solutions

Offer further technical support with extensively qualified experience

Provide Senior Technical staff for on site technical support

Professional Recommendations on dust collector operation and maintenance

Professional Supervision of filter bag installation

Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance

Analysis of filter bag life and recommendations of replenishment programs
