Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

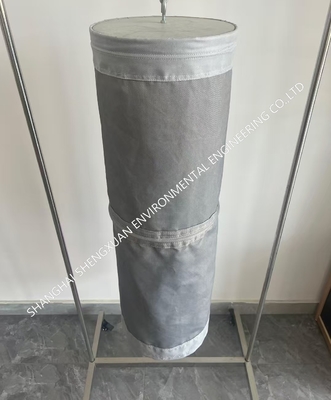

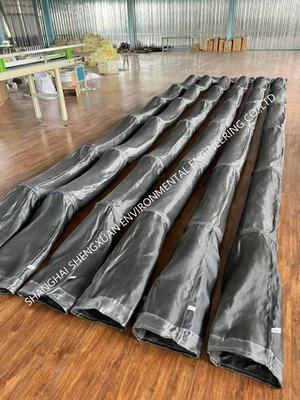

Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping

Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping
Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping

Large Image :  Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: DN292X10000
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: Fiberglass Filter Fabric Scrim: 100% Fiberglass Woven Fabric Scrim
Bag Size: DN 292x 10000mm Work Temp.: 280 Degree
Air Permeability: 15-30 M3/m2.m Application: Alloys Furnace
Name: Fiberglass Dust Filter Bag Filtration Efficiency: < 20mg/Nm3
Life: 12 Months Treatment: PTFE Dipping And Coating
High Light:

Fiberglass Reverse Filter Bags

,

PTFE Dipping Reverse Filter Bags

,

280 Degree Reverse Filter Bags

In reverse-air baghouses, the bags are fastened onto a cell plate at the bottom of the baghouse and suspended from an adjustable hanger frame at the top. Dirty gas flow normally enters the baghouse and passes through the bag from the inside, and the dust collects on the inside of the bags.



Reverse air baghouses are typically seen in large air handling applications. The most common filter bag configuration is a compression band with cap and hook for the top. For bottom configuration you will typically see either a compression band, corded, or double beaded snap band.



Reverse-air baghouses are compartmentalized to allow continuous operation. Before a cleaning cycle begins, filtration is stopped in the compartment to be cleaned. Bags are cleaned by injecting clean air into the dust collector in a reverse direction, which pressurizes the compartment. The pressure makes the bags collapse partially, causing the dust cake to crack and fall into the hopper below. At the end of the cleaning cycle, reverse airflow is discontinued, and the compartment is returned to the main stream.



How to choose the filter bag ?

Fiberglass Reverse Dust Collector Filter Bags PTFE Dipping 0



The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.



The Factors that affecting the selection of the filter medium



The Select Indication of the Filter medium



A. Temperature

B. Chemical Property

C. Concentration of the dust content

D. Filter Gas Speed



Test Item & Test Standard

SL.No. Item Test Standard
1 Area Weight FZ/T60003-91
2 Air Permeability GB/T5453-1997
3 Tensile Strength GB/T3923.1-2013
4 Elongation GB/T3923.1-2013
5 Burst GB/7742.1-2005
6 Liquid Repellent GB/4745-2012



Post Treatment For Filtering Materials



Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment



Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days



Shipping way & Loading Port :



By sea / air / express



Shanghai / Ning Bo/Tianjin



Applications:

Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.



Technical Service &support



Provide Solutions

Offer further technical support with extensively qualified experience

Provide Senior Technical staff for on site technical support

Professional Recommendations on dust collector operation and maintenance

Professional Supervision of filter bag installation

Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance

Analysis of filter bag life and recommendations of replenishment programs
