200MM Cylinder 20m3/H Fluid Single Bag Filter Housing

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

200MM Cylinder 20m3/H Fluid Single Bag Filter Housing

200MM Cylinder 20m3/H Fluid Single Bag Filter Housing
200MM Cylinder 20m3/H Fluid Single Bag Filter Housing 200MM Cylinder 20m3/H Fluid Single Bag Filter Housing

Large Image :  200MM Cylinder 20m3/H Fluid Single Bag Filter Housing Get Best Price

Product Details:
Place of Origin: China
Brand Name: Austin Filter
Certification: ISO9001
Model Number: P2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 20 Sets per day
Detailed Product Description
Body Material: Stainless Steel Suitable Media: Oil Water
Item Type: Fluid Filtration Vessel WOG Rating: 150 PSI
Basket Style: Standard Basket Outlet Style: Inline Bottom
Brand: Austin Filter , Own Bag Qty: Single
Connection: Flange
High Light:

20m3/H Bag Filter Housing

,

200MM Cylinder Bag Filter Housing

,

Fluid SS Bag Filter Housing

Carbon Steel Filter Unit Bag Housing Austin filter made



Austin Filter bag filter housings, including plastic bag filter housings for filter bags, provide solutions for a broad variety of fluid applications in process industries, from the purification of water to filtration of the most challenging solvents, alkalis, acids and oils.

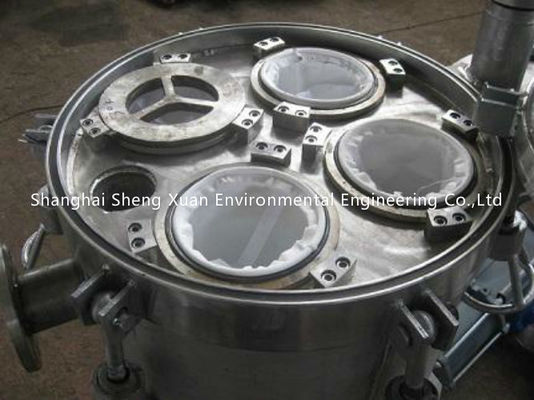

Bag filter housings are available in single bag and multi bag filter housing options, along with plastic filter housings options and basket strainers. All bag filter housings are designed for optimum filtration performance and consist of a filter vessel, filter bags, an internal cage to support the bags, positive sealing arrangements and a choice of end connections. A basket supports the filter bag during filtration and as the differential pressures increase, filtration takes place from inside to outside. Solids are collected on the inside of bag filters for easy removal and the filtered fluid exits through the outlet pipe at the bottom of the housing.



Bag Filter housing vessel

Model

Filtration area

(m2)

diameter of

cylinder(mm)

Size of import

and export(inch)

Equipment

height(mm)

Filtration flow

(m3/h)

1P1S 0.25 200 2“ 735 20
1P2S 0.5 200 2” 1050 40
1P3S 0.1 114 1" 360 8
1P4S 0.2 114 1" 520 15

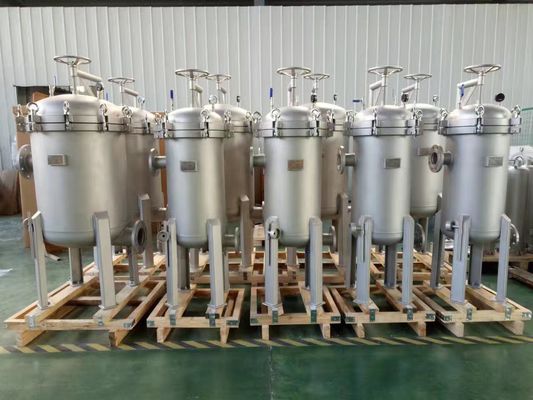

Package Details:wooden boxes into container Bag filter housing

Delivery Time:Shipped in 15 days
