Product Details:
Payment & Shipping Terms:
|
| Material: | SS304 | Application: | Water Filtration Industries |
|---|---|---|---|
| Filtration Accuracy: | 0.5-1500 Micron | Package: | Wood Case |
| Delivery Time: | 10 Days | Gurantee Time: | 12-24 Month |
| Filter Element: | Bag Type | ||
| High Light: | bag filter vessel,liquid filter housing |
||

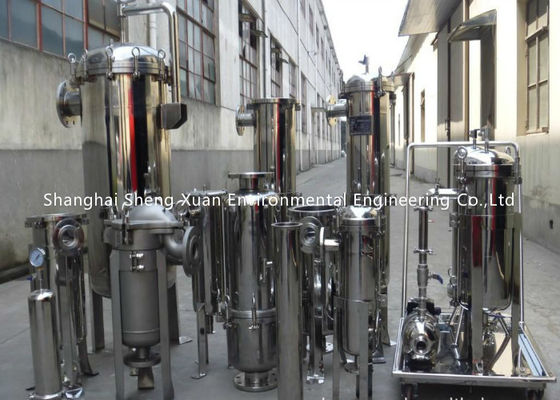

Multi bag filter housing vessel up to 1000m3/h flow capacity
We offer multi bag vessel from 2 bags to 24 bags per vessel with unique spring aided cover closure design and innovative quick closure design options, that improve efficiency when interchanging filter bags. We offer multiple options on cover closure for our customers’ convenience.
Working principle
The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag. The impurities will be blocked into the filter bag.The filter bag can be reused repeatedly after washing or cleaning. It is easy to replace the filter bags.
The filter is features of no material consumption and low operation cost
Bag type filter is a pressure filtration device ,which is mainly consists of filtration cylinder,cylinder cover and fast open structure,stainless steel strengthen filtration bag,etc.when filtrate flows from side entrance of filter shell into the pipe bag,The bag itself is installed inside the enhanced basket ,liquid penetrates bag with required fineness grade that can be provided with qualified filtrate,impurity particles were bag intercept.It is very easy to replace the filtration bags,there is hardly no material to be consumed.
Advantage
High capacity , small size
Easy to replace the filter bag, no need clean and labor saving
After cleaning the filter bag can be used repeatedly to save cost
Filter precision reached at 0.5 micron
Low leakage risk ensures high quality
High working pressure, low pressure loss, low operation cost and energy saving
Widely applications, flexible use, various installation model for choice
Specifications
| Model | Bag Qty |
Filtration area (m2) |
Max Flow(t/h) |
Inlet Flange (mm) |
Working pressure |
| DB-2P2S | 2 | 1 | 70 | DN50 |
0.5Mpa |
| DB-3P2S | 3 | 1.5 | 105 | DN80 | |
| DB-4P2S | 4 | 2 | 140 | DN100 | |
| DB-5P2S | 5 | 2.5 | 175 | DN150 | |
| DB-6P2S | 6 | 3 | 210 | DN150 | |
| DB-7P2S | 7 | 3.5 | 245 | DN150 | |
| DB-8P2S | 8 | 4 | 280 | DN150 | |
| DB-10P2S | 10 | 5 | 350 | DN200 | |
| DB-12P2S | 12 | 6 | 420 | DN200 | |
| DB-14P2SL | 14 | 7 | 490 | DN200 | |
| DB-16P2SL | 16 | 8 | 560 | DN250 | |
| DB-18P2SL | 18 | 9 | 630 | DN250 | |
| DB-20P2SL | 20 | 10 | 770 | DN250 |
Delivery and package
Package Details:wooden boxes into container Bag filter housing
Delivery Time:Shipped in 15 days
FAQ
Can you produce the bag filter house according to our drawing or samples ?
Yes, of course we can
Can you accept print our Logo on the valve handle cover ?
Yes, we can if you need
How about the delivery time ?
With the standard products, normally delivery time will be 10 days
