Product Details:
Payment & Shipping Terms:
|
| Material: | 100% High Temperature Resistance Chemical Fibers | Scrim: | 100% PTFE Scrim |
|---|---|---|---|
| Bag Size: | DN 130x 6000 Mm | Work Temp.: | 260 Degree |
| Air Permeability: | 15-30 M3/m2.m | Application: | All Kinds Dust Collector |
| Name: | High Temperature Resistance Filter Bag | Filtration Efficiency: | < 20mg/Nm3 |
| Life: | 36 Months | Treatment: | PTFE Dipping And Coating |
| Highlight: | industrial dust collector bags,polyester filter bag |
||

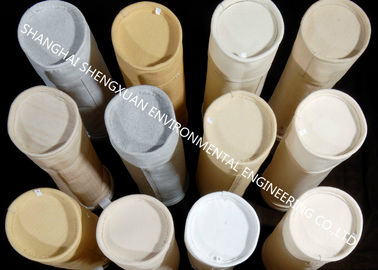

High temperature resistance dust filter bags which widely used in cement kilns dust collectors
We use the good quality imported P84 fiber, polyimide , to produce 100% pure P84 dust filter bags.it is good performance of easy cleaning, decay resistance , it is widely used in the asphalt plants,cement plants , waste incinerators, fluid bed boiler, coal fired boiler that have higher request of the filter fineness and use life.
High temperature filtration material is made by high temperature resistance chemical fibers.According to different materials,this series can satisfy any flue gas filtration requirement below the temperature 260C.This series has good abrasion and folding resistance,and some also good acid,alkali resistance and hydro resistance.

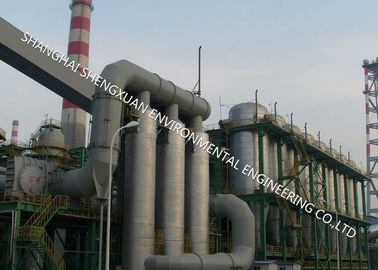

widely used in the field of cement kiln,blast-furnace, sinter fume in steel industry,burning coal boiler of power plant,chemical industry,asphalt plant,carbon black industry and waste incineration,etc.
| Article name | Weight | Thickness | Air permeability | Working temp. |
| Polyester | 450-700gsm | 1.6-2.2mm | 8-18 m3/m2.m | 130 degree |
| Polypropylene | 400-600gsm | 1.8-2.2mm | 8-20 m3/m2.m | 80 degree |
| Acrylic | 450-600gsm | 1.6-2.2mm | 8-20m3/m2.m | 125 degree |
How to choose the filter bag ?
The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Test Item & Test Standard
| SL.No. | Item | Test Standard |
| 1 | Area Weight | FZ/T60003-91 |
| 2 | Air Permeability | GB/T5453-1997 |
| 3 | Tensile Strength | GB/T3923.1-2013 |
| 4 | Elongation | GB/T3923.1-2013 |
| 5 | Burst | GB/7742.1-2005 |
| 6 | Liquid Repellent | GB/4745-2012 |
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
