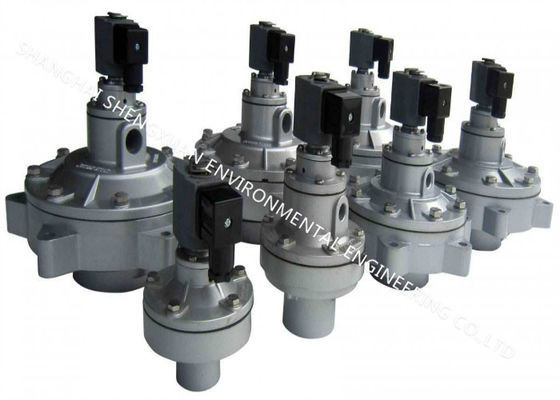

Submerged Pulse Jet Valve DMF-Y-50S For Industrial Dust Collectors Bag Filters Dedusting

Submerged Pulse Jet Valve DMF-Y-50S For Industrial Dust Collectors Bag Filters Dedusting
Submerged Pulse Jet Valve DMF-Y-50S For Industrial Dust Collectors Bag Filters Dedusting Submerged Pulse Jet Valve DMF-Y-50S For Industrial Dust Collectors Bag Filters Dedusting

Large Image :  Submerged Pulse Jet Valve DMF-Y-50S For Industrial Dust Collectors Bag Filters Dedusting Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: DMF-Y-50S
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 500 sets per day
Detailed Product Description
Material: Stainless Steel Work Temp.: -20-50 Degree C
Media: Air Pressure: 0.3-0.8Mpa
Voltage: AC110V/AC220V/DC24V Usage: Bag Filter Dust Collector Housing
High Light:

pneumatic pulse valve

,

air pulse valve

Submerged pulse jet valve DMF-Y-50S for industrial dust collectors bag filters dedusting





submerged pulse valve 



The valve seat is inlaid in the air chamber with small resistance, good circulation and high blowing volume, thereby increasing the load driving quantity and expanding the application range of gas source pressure, which is more suitable for occasions where the gas source pressure is lower.







FEATURES

The pulse diaphragm valvesare especially designedfor dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economicaloperation

The high flow, angle type bodies,springless construction, in combination with thespecial diaphragm assemblies give the unique operating features

required for dust collector service applications

          The design with integral compression fittingswill facilitate



Parameters



Product name   Submerged pulse valve DMF-Y-76S
Model No. DMF-Y-62 S
Working pressure 0.3-0.8 MPa
Ambient temperature -5~55 degree C
Relative humidity <85%
Fluid Clean Air
Voltage AC110V/AC220V/DC24V
Diaphragm life Over one million cycles
Orifice DN 62 mm
Connection diameter DN 80 mm



 Technical characteristics



1. Vacuum treatment for solenoid coil to eliminate harmful impurities, it makes the pilot work more sensative and reliable;



2. Orifice and unloading port match with the pulse valve, fast opening and closing, so it increases the blowing volume per unit time;



3. Membrane: Effective bonding and Sufficient tensile strength, Reliable sealing, Great anti-corrosion and anti-aging properties, we are the only company in China to use high-performance diaphragm so that it ensures long-term operation reliability. The company which provide us diaphragms also supply diaphragm to GOYEN and ASCO valve, it’s the same supplier. We guarantee at least 1millon times of service life(5 years).



4. We are using high-quality pressure spring to guarantee at least 1millon times of service life.



Submerged Pulse Jet Valve DMF-Y-50S For Industrial Dust Collectors Bag Filters Dedusting 0
