Different Open Mesh Size Conveyor Belt , Black Color Mesh Conveyor Belt

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

Different Open Mesh Size Conveyor Belt , Black Color Mesh Conveyor Belt

Different Open Mesh Size  Conveyor Belt , Black Color Mesh Conveyor Belt
Different Open Mesh Size  Conveyor Belt , Black Color Mesh Conveyor Belt Different Open Mesh Size  Conveyor Belt , Black Color Mesh Conveyor Belt

Large Image :  Different Open Mesh Size Conveyor Belt , Black Color Mesh Conveyor Belt Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: 6001
Payment & Shipping Terms:
Minimum Order Quantity: 20 meters
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 10 days
Supply Ability: 500 meters per day
Detailed Product Description
Yarn Type: E-Glass Weight: 450-750g/m2
Weave Type: Plain Weave Max Width: 3800mm
Color: Black And Brown Mesh Size: 1X1 ,4X4
High Light:

ptfe conveyor belt

,

750g/m2 conveyor belt

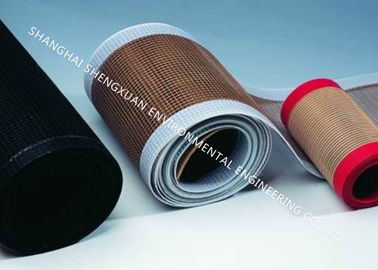

Different open mesh size black color PTFE coated fiberglas mesh conveyor belt





PTFE open mesh conveyor belt series



PTFE coated open mesh conveyor belt for screen printing machine

PTFE coated open mesh conveyor belt are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. Our belts have a good performance during operation due to the good quality. We have a widely range of sizes for customers choosing. Special requirement for edge reinforcement and belt joint can be made according to request.



Feature:

1. Good holding power at elevated temperature and dimensional stability

2. Excellent mold-releasing and sliding property

3. The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.

4. Including pin seam, bulnose seam, etc.



Specifications



Item No. Color Mesh Size(mm) Weight of Fiberglass Total weight Max Width
6001 Brown 1X1 367 g/m2 440 g/m2 3.8m
6001B Black 1x1 367 g/m2 440 g/m2 3.8m
6003 Black 4x4 343 g/m2 480 g/m2 3.8m
6004 Brown 4x4 343 g/m2 475 g/m2 3.8m
6007 Brown 4x4 417 g/m2 570 g/m2 3.8m
6008 Brown 4x4 414 g/m2 570 g/m2 3.8m
6012 Black 4x4 414 g/m2 570 g/m2 3.8m



Package of PTFE conveyor belt:

To ensure a secure package for the product, we have special package: first with bubble film inside, and then plastics cloth outside, finally packed with export carton. For the belt with the width more than 2m, we'll pack it in iron pallet which fully protect the belt from damage during transportation.



Available options for PTFE coated open mesh belt edging:



1. PTFE Film Edging, which encapsulates the edge to stop fraying and offer protection. The advantage of using film is that it is soft in nature and will stretch with the belt when under tension.



2. PTFE Glass Cloth, which edging can be used as a sturdier option to film and a good option if a tracking arm is used to detect the edge of the belt when coming in to contact with it.



3. PTFE Coated Kevlar which is the most durable of the edging types. It is a good option when considering using guiding cord on the belt.



Different Open Mesh Size  Conveyor Belt , Black Color Mesh Conveyor Belt 0
