Product Details:
Payment & Shipping Terms:
|
| Material: | PP /PEneedle Punched Micron Felts | Micron Filtration: | 1-200micron |
|---|---|---|---|
| Bag Size: | DN 180x810 | Seam Treatment 1: | WS-Fused Seam |
| Seam Treatment 2: | SE-Stitched Seam | Bottom Shape1: | R-Semi-circle |
| Bottom Shape 2: | V-Traingle | Name: | Industrial Liquid Filter Bag |
| High Light: | monofilament filter bags,liquid filter bag |
||

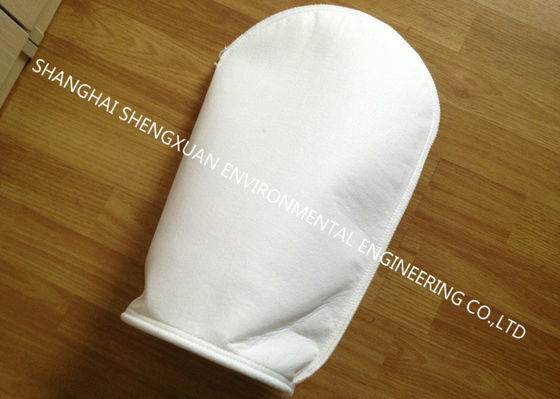

DN 180x810 micron rated filter bags used for single bag filter housing
We supply you with various of PP, PE,NMO ,Stainless steel wire mesh and PTFE filter bags of silk materials, to meet your strictly requirements for different filtration processes. Our micron grade liquid filter bag can economically remove any solid form tiny particles in the liquid flow. The solids in liquid can be accurately fast, easily blocked inside the filter bag to keep liquid clean. The filter bag structure is strong so that the liquid can keep high speed flow.The selection of the filter bag should be based on the liquid properties, and the chemical conditions at that time.
Application
Food and beverage
Automotive
Fine and specialty chemical
Paints , coatings,resins, adhesives,inks
Petrochemical industry
Toiletries and cosmetics
Lubricating oil
Later processing industry
Any liquid needed filtration
Advantage
Technical assistance to determine the correct bag for your specific application
Custom designed bags to meet your specific applications
Provide max performance and long filter life
Choice of filter bag styles and media
Large inventory for fast worldwide delivery
Features
Seam treatment: ultrasonic welded or thread stitched
Seal ring options: Polypropylene or polyester SDS, STS, Zinc coated steel or stainless steel snap fit rings.
Ring attachment: Ultrasonic welded or thread stitched
Micron range:1,3,5,10,25,50,75,100,125,150,200 micron are available.
Efficiency: Nominal rating, 85% contaminant particle retention efficiency with a single pass.
Surface treatment: Fiber migration and extractable free glazed media surface treatment.
Media grade: Exclusively FDA compliant media , silicon free, and oil free.
Optimum replacing pressure differential 0.10 Mpa, Max 0.18 Mpa
Broad chemical compatibilities.
Technical Specifications
| Bag size | Filter Area(m2) | Volume(Litre) | Max.flow(m3/h | Diameter | Length |
| P1S | 0.25 | 7.9 | 20 | 7” | 17” |
| P2S | 0.5 | 17 | 40 | 7” | 32” |
| P3S | 0.08 | 1.3 | 6 | 4” | 9” |
| P4S | 0.15 | 2.5 | 12 | 4” | 15” |
| The above dimension meet international standard.We also supply bags filter as per customers’ special requirements. | |||||
Chemical Compatibility
| Filter media | Acids | Bases | Solvents | Oxidizing | Temp. |
| Polyester | Good | Good | Excellent | Limited | 150-170 |
| Polypropylene | Excellent | Excellent | Good | Excellent | 90-110 |
| Nylon | Fair | Good | Excellent | Fair | 150-170 |
| PTFE | Excellent | Excellent | Excellent | Excellent | 250-300 |
Micron/Mesh Conversion Table( Nylon /NMO)
| Micron | 1000 | 840 | 710 | 590 | 500 | 420 | 350 | 300 | 250 | 200 | 180 | 150 |
| Mesh | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 |
| Micron | 100 | 90 | 75 | 60 | 53 | 44 | 37 | 30 | 20 | 15 | 10 | 5 |
| Mesh | 150 | 170 | 200 | 230 | 270 | 325 | 400 | 500 | 625 | 1000 | 1250 | 2500 |
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Carton Box Dimension: 40cmx50cm x60 cm
Gross weight: 12 kgs per box
Qty inside: 100 pcs P1S
How to replace the filter bag
Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).
Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
