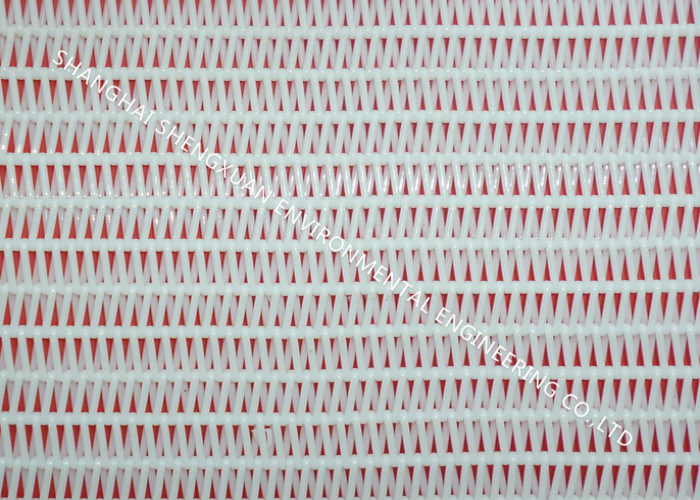

Spiral Loop Hole Shape Polyester Mesh Belt

Spiral Loop Hole Shape Polyester Mesh Belt
Spiral Loop Hole Shape Polyester Mesh Belt Spiral Loop Hole Shape Polyester Mesh Belt

Large Image :  Spiral Loop Hole Shape Polyester Mesh Belt Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: G-048
Detailed Product Description
Features: Heat Resistance Material: PET Monofilament
Structure: Belt Type Hole Shape: Spiral Loop
Width: 1-5 Meters Thickness: 1.7-3mm
High Light:

polyester conveyor belt


polyester mesh fabric

Polyester spiral dryer mesh belt paper machine conveyor belt


1. Heat resistance: 250C
2. Best working temp: under 180C
3. Strength
4. Flat surface
5. Good air permeability
6. Stable property against heat and moisture
7. Low thermal shrinking, less elongation at heat
8. Resistant to most acids and organic solvents Safe for food processing

Our service


1. Product Model:Polyester Dryer Screen Conveyor Belt

2. Quality: All goods will be tested by our professional QC team before balance payment and


3. Payment: T/T, L/C, D/P, Western Union, Paypal, Escrow, Cash.

4. Samples: Samples for quality testing are available, about the sample fee and

freight,hoping we can understand with each other,sometimes sample is free of charge, but we

kindly ask you to pay for the freight.

5. Packing: Kraft paper or plastic blister film inner package, then paper box or wooden

cartons for outer package, try to save space to make compact package.

6. Shipping: Air Express, Sea Shipping and TNT,DHL,FEDEX,UPS,EMS

7. Warranty: 6 months quality warranty

8. Serivice: We have a best sales services team with rich experience , and will solve all the

problems for you now and in the future.

Product PET spiral dryer belt
Type NO. G-048
Material PET mono filament
Air permeability @127Pa 4700-5000L/m2.s
Air permeability@200Pa 6000-6300L/m2.s
Water permeability@1200Pa 470-490L/m2.s
Thickness 2.01mm
Tensile strength N/cm 1100
Elongation rate (warp direction) /
Elongation rate% 0.40
Weight 1070 g/m2
Interception accuracy 2100-2300 micron
Using range Paper making machine dryer belt
