Product Details:
Payment & Shipping Terms:
|
Material: | 100% Chemical Fibers | Scrim: | 100% Chemical Scrim |
---|---|---|---|
Bag Size: | DN 130x 6000 Mm | Work Temp.: | 260 Degree |
Air Permeability: | 15-30 M3/m2.m | Application: | All Kinds Dust Collector |
Name: | High Temperature Resistance Filter Bag | Filtration Efficiency: | < 20mg/Nm3 |
Life: | 36 Months | Treatment: | PTFE Dipping And Coating |
High Light: | PPS dust removal bags,chemical fibers dust removal bags,PPS dust extractor bags |

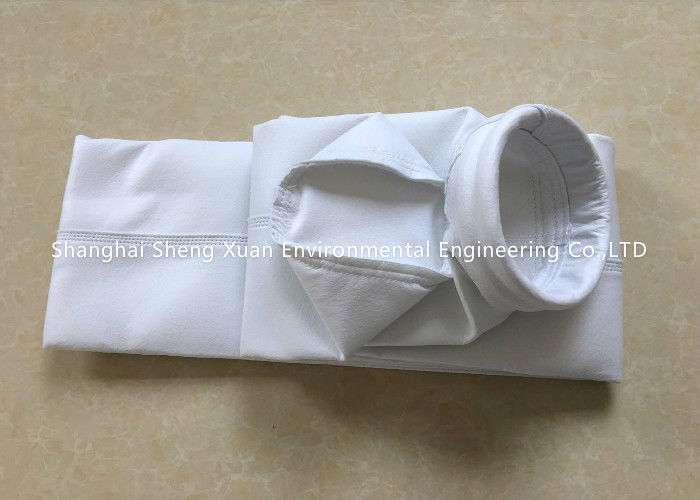

The industrial used dust filter bag which made by Polyester, P84, Nomex and PPS felts
Easy cleaning dust filter bag is a type of PPS and Nomex dust filter bag which treated by special process. It has smooth surface,so when dust collectors reverse blowing the dust on the surface very easy to clean up, then improve the filter efficiency of dust collector.
Article name | Weight | Thickness | Air permeability | Working temp. |
Polyester | 450-700gsm | 1.6-2.2mm | 8-18 m3/m2.m | 130 degree |
Polypropylene | 400-600gsm | 1.8-2.2mm | 8-20 m3/m2.m | 80 degree |
Acrylic | 450-600gsm | 1.6-2.2mm | 8-20m3/m2.m | 125 degree |
How to choose the filter bag ?
The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Test Item & Test Standard
SL.No. | Item | Test Standard |
1 | Area Weight | FZ/T60003-91 |
2 | Air Permeability | GB/T5453-1997 |
3 | Tensile Strength | GB/T3923.1-2013 |
4 | Elongation | GB/T3923.1-2013 |
5 | Burst | GB/7742.1-2005 |
6 | Liquid Repellent | GB/4745-2012 |
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Service
Provide bag installation service, equipped with special instruments and trained professionals.
Provide follow-up service, maintain and direct the operation during run time.
When problem occurs,we will go to site within 24 hours to survey ,analyze and solve the problem.
