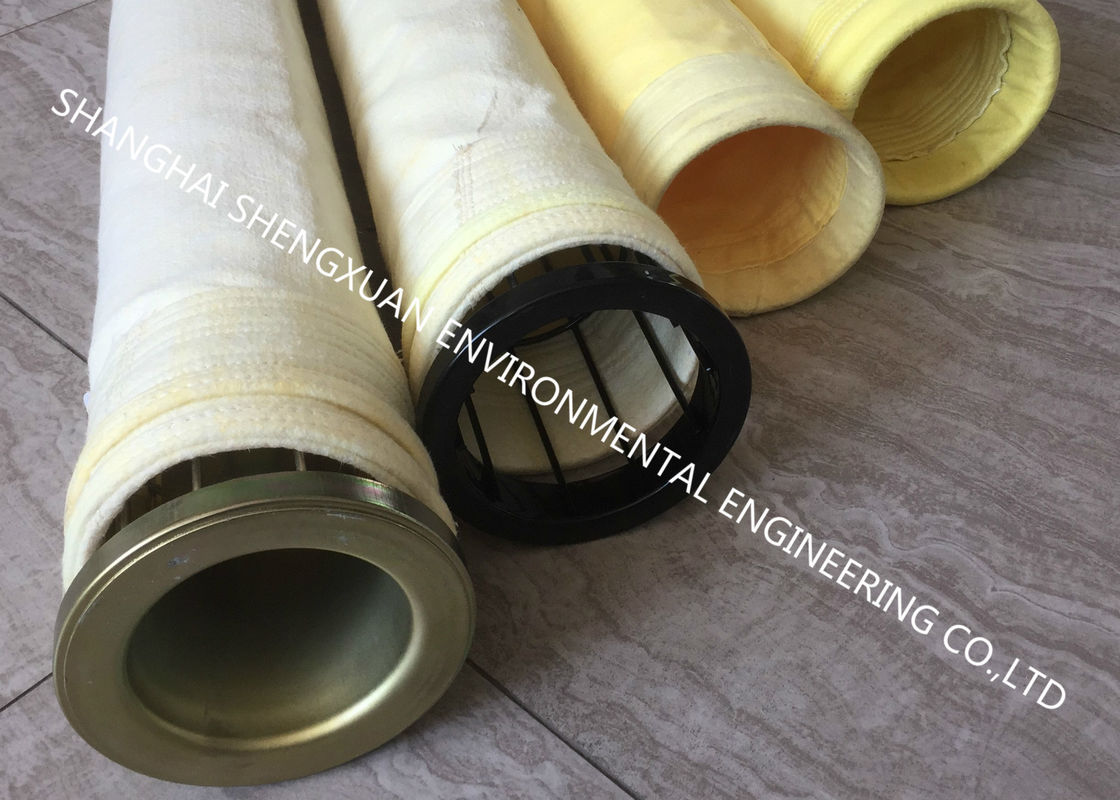

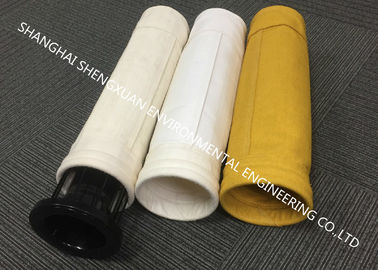

Dust Filter Bag for Cement Kilns
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | P84 Composite Filter Fabric | Scrim: | 100% Fiberglass Scrim |
|---|---|---|---|
| Bag Size: | DN 130x 6000 Mm | Work Temp.: | 260-280 Degree |
| Air Permeability: | 15-30 M3/m2.m | Application: | All Kinds Dust Collector |
| Name: | Dust Filter Bag | Filtration Efficiency: | < 10 Mg/Nm3 |
| Life: | 18 Months | Treatment: | PTFE Dipping And Coating |
| High Light: | polyester filter bag,nomex filter bags |
||
The most popular dust filter bag which used in cement kilns dust collectors
In Cement industry, our main dust filter bag materials are P84 series bag filter and Nomex series bag filters, which are successfully used in many large scaled cement plants such as Hengda cement, Tower brand cements, Lafarge cements and so on.
The Performance index of the dust filter bag
| Item |
Service gas speed |
Working temp. | Dust cleaning | Service range |
| P84 Filtration | 1.2m/min | 260-280 degree C | Impulse dust cleaning | Specially used in Cement kiln |
| P84 composite filtration | 1.2m/min | 230-260 degree C | ||
| Nomex filtration | 1.2m/min | 204-240 degree C |
1. All the parameters indicate the performace index of the products, the reasonable filtration should be chosen according to the specific working conditions.
2. Different parts of the same type cement kilns, adopt different treatment according to the specific conditions.
How to choose the filter bag ?
The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Test Item & Test Standard
| SL.No. | Item | Test Standard |
| 1 | Area Weight | FZ/T60003-91 |
| 2 | Air Permeability | GB/T5453-1997 |
| 3 | Tensile Strength | GB/T3923.1-2013 |
| 4 | Elongation | GB/T3923.1-2013 |
| 5 | Burst | GB/7742.1-2005 |
| 6 | Liquid Repellent | GB/4745-2012 |
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Applications:
Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.
Technical Service &support
Provide Solutions
Offer further technical support with extensively qualified experience
Provide Senior Technical staff for on site technical support
Professional Recommendations on dust collector operation and maintenance
Professional Supervision of filter bag installation
Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance
Analysis of filter bag life and recommendations of replenishment programs
