Dust Collector polyester Filter Bags

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

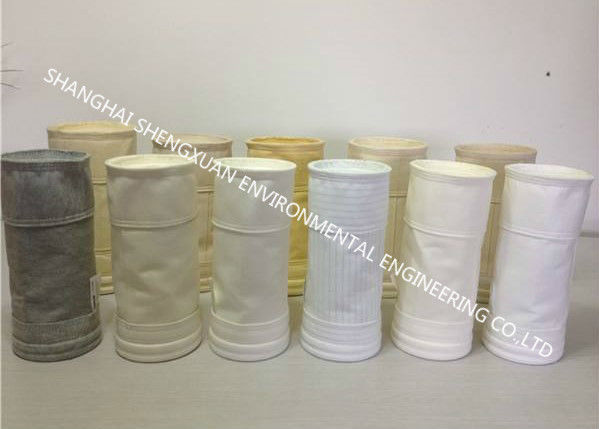

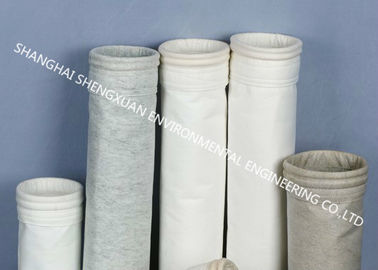

Dust Collector polyester Filter Bags

Dust Collector polyester Filter Bags
Dust Collector polyester Filter Bags Dust Collector polyester Filter Bags

Large Image :  Dust Collector polyester Filter Bags Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: Easy cleaning
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: Polyester Filter Fabric Scrim: 100% Polyester Scrim
Bag Size: DN 130x 6000 Mm Work Temp.: 130-150 Degree
Air Permeability: 15-30 M3/m2.m Application: All Kinds Dust Collector
Name: Dust Filter Bag Filtration Efficiency: < 10 Mg/Nm3
Life: 18 Months Treatment: PTFE Dipping And Coating
High Light:

industrial dust collector bags

,

nomex filter bags

Polyester easy cleaning dust filter bags to improve filter efficiency



Easy cleaning dust filter bag is a type of polyester dust filter bag which treated by special process. It has smooth surface,so when dust collectors reverse blowing the dust on the surface very easy to clean up, then improve the filter efficiency of dust collector.



Specification Polyester easy cleaning dust filter bags

 Material  Polyester needle punched 550 gsm fabric
 Scrim  100% polyester woven scrim
 Weight  550 g/m2
 Thickness  1.9-2.0 mm thickness
 Air permeability  18-25 m3/m2/min @200Pa
 Breaking strength  Warp >1000
   Weft > 1200
 Enlongation  < 20%
 Working temp.  < 130 degree C
 Instant temp.  150 degree C
 Finishing  singeing, calendering,water and oil resistance



How to choose the filter bag ?



The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.



The Factors that affecting the selection of the filter medium



The Select Indication of the Filter medium



A. Temperature

B. Chemical Property

C. Concentration of the dust content

D. Filter Gas Speed



Test Item & Test Standard

SL.No. Item Test Standard
1 Area Weight FZ/T60003-91
2 Air Permeability GB/T5453-1997
3 Tensile Strength GB/T3923.1-2013
4 Elongation GB/T3923.1-2013
5 Burst GB/7742.1-2005
6 Liquid Repellent GB/4745-2012





Post Treatment For Filtering Materials



Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment



Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days



Shipping way & Loading Port :



By sea / air / express



Shanghai / Ning Bo/Tianjin



Dust Collector polyester Filter Bags 0



Applications:

Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.



Technical Service &support



Provide Solutions

Offer further technical support with extensively qualified experience

Provide Senior Technical staff for on site technical support

Professional Recommendations on dust collector operation and maintenance

Professional Supervision of filter bag installation

Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance

Analysis of filter bag life and recommendations of replenishment programs
