5mm Thickness Fluidizing Polyester Air Slide Fabric

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

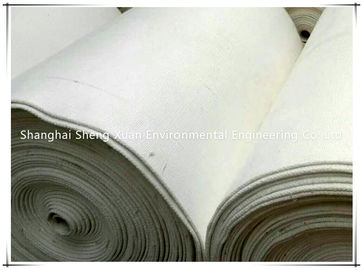

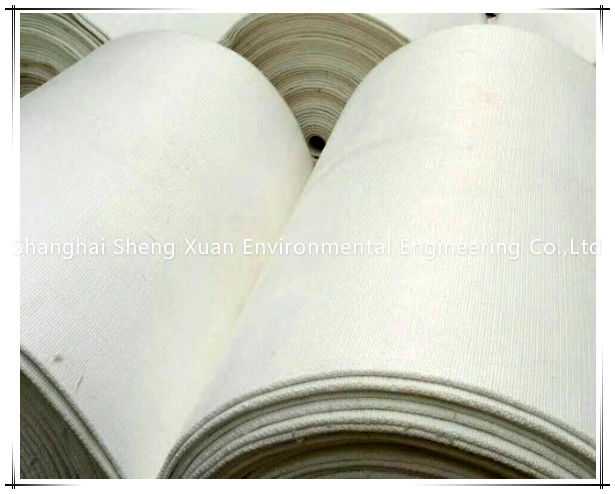

5mm Thickness Fluidizing Polyester Air Slide Fabric

5mm Thickness Fluidizing Polyester Air Slide Fabric
5mm Thickness Fluidizing Polyester Air Slide Fabric 5mm Thickness Fluidizing Polyester Air Slide Fabric

Large Image :  5mm Thickness Fluidizing Polyester Air Slide Fabric Get Best Price

Product Details:
Place of Origin: Made In China
Brand Name: Austin Filter
Certification: ISO
Model Number: B580
Payment & Shipping Terms:
Minimum Order Quantity: 50 meters
Price: Negotiable
Packaging Details: Roll form, 50 meters per roll, Pallet
Delivery Time: 15 days
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 500 meters per day
Detailed Product Description
Material: Polyester Yarn Construction: 4 Ply Solid Weave
Weight: 4.0 Kg/m2 Width: 270,330,450,550,900mm
Air Peremabiltiy: 3.2-10 M3/m2/m Application: Cement Processing
Packing: 50 Meters Length Color: White
Name: FLUITEX
High Light:

air slide belt

,

polyester conveyor belt

Fluidizing Polyester Air Slide Fabric White Color horizontal belt conveyor 5mm thickness B580





Austin Industries  fluidization fabric  is ideal for the alumina transportation : many smelters are using it in their airslides. It improves alumina conveying as buffer silos, siphon smelter pots and fluidized bottom for filters.



Our quality of fabrics could be cut in any shape,plate or conical and fitted any place.





Working principle of air slide fabric


In cement plant
The Air slide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.





Specifications:



Raw Material =100% spun fiber polyester

Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O

Pressure: 2000pa for middle air resistance

4000pa for high air resistance

Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%

Max Width: 2800mm

Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C



Air Slide Fabrics for all Pneumatic gravity Conveyor System i.e. Air Slide, Fluidor, Fluxo-Channel Fluid Slide, Aeration – Box, Airlift or Aerpole pumps in Sillo, Bin & Hopper.

For bulk material conveying fine crushed and ground powdered chemical mineral substances used to manufacture cement as well as any other similar powdered products.

Our “Air Slide Fabrics” have good abrasion resistance offered in 100% Synthetic qualities of polyester to withstand organic and inorganic chemicals, acids, alkalis and oxidizing agents contained in raw mix, clinker and cement.



5mm Thickness Fluidizing Polyester Air Slide Fabric 0
