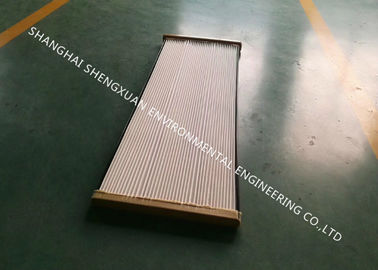

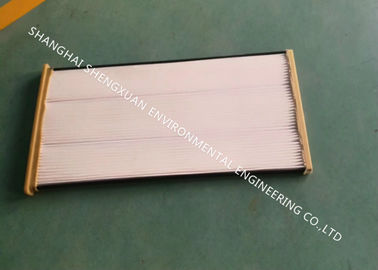

1000mm Height Pleated Polyester Filter Cartridge With Anti - Rust Caps And Metal Frame

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

1000mm Height Pleated Polyester Filter Cartridge With Anti - Rust Caps And Metal Frame

1000mm Height Pleated Polyester Filter Cartridge With Anti - Rust Caps And Metal Frame
1000mm Height Pleated Polyester Filter Cartridge With Anti - Rust Caps And Metal Frame 1000mm Height Pleated Polyester Filter Cartridge With Anti - Rust Caps And Metal Frame

Large Image :  1000mm Height Pleated Polyester Filter Cartridge With Anti - Rust Caps And Metal Frame Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO 9001
Model Number: 500 x 1000mm
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: negotiable
Packaging Details: Export box
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 200 pcs per day
Detailed Product Description
Name: Flat Type High Flow Panel Filter Cartridge 500 Mm Flange Filter Media: Polyester
Work Efficiency: 99.99% Work Temp: 80-130 Degree C
Construction: Pleated Package: Pallet
Highlight:

pleated polyester filter cartridge

,

gas filter cartridge

Flat Type High Flow Panel Air Filter Cartridge 500mm Flange



Description:

Flat Panel Air Filter Cartridge
Type : Flat Panel Air Filter Cartridge
Flange Length : 500 mm
Flange width : 96 mm
Height : 1000 mm
Filtration area : 5.0  m2



Material Data



Item Description Data
1 Weight(g/m2) 240
2 Thickness(mm) 0.6
3 Porosity(S.l/m2) 180
4 Filtration efficiency % 99.99%
5 Filtration precision 0.1-5 micron
6 Working temp. 130 degree
7 Filter pressure 0.5Mpa



Features:



1. Unique PU or  plastic coating anti-rust caps and metal frame

2. Wide pleat spacing,easy-cleaning design

3. Unique rotation glue,effectively separate the pleats,protect the filter media from abrasion by inner liner

4. Specific gasket

5. Top open, bottom open/bottom close with deflating bolt hole





FAQ



1. Q:Are you a factory or trading company?

A:We are a factory



2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in Suzhou City, Jiangsu Province, China, about 1.5 hours from Shanghai and

40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!



3. Q:How can I get some samples?

A: We are honored to offer you samples.



4. Q:How does your factory do regarding quality control?

A:Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
