Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags

Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags
Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags

Large Image :  Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Model Number: AR 550
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: Aramid Fiber,Nomex Fiber Scrim: Nomex/PTFE Scrim
Bag Size: Customers Demands Work Temp.: 204 Degree
Air Permeability: 15-30 M3/m2.m Application: Alloys Furnace, Asphalt Mixing, Cement
Filtration Efficiency: < 10mg/Nm3 Life: 12 Months
Treatment: PTFE Dipping And Coating
High Light:

10mg/Nm3 Dust Collector Bags


Nomex Dust Collector Bags


PTFE Scrim Dust Collector Bags

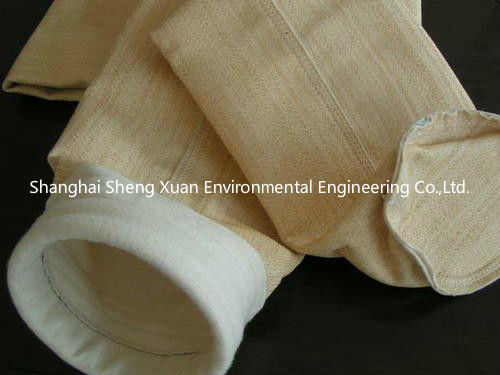

High temperature resistance Nomex filter bag 10mg/nm3 dust emission


Nomex dust filter bag is a kind of high temperature resistance filter material which has the reasonable structure and good performance. It not only has the same advantage of the woven glass fabric, as high temperature resistance, corrosion resistance, stable size, small elongation shrinkage, high strength and so on, but also the carpet fiber is the short fiber which fineness is just about 5-7 microns. Three dimensional micron pore structure , high porosity , small filtration resistance for gas, it is a kind of high temperature filter material which with the high speed and high efficiency.


We select Dupont Nomex Filter Fiber to produce the Nomex high temperature needle felt , it is the best filter material for high temperature fume / dust / ash, for steel plant, asphalt mixing, other metal industries . The characteristics of nomex filter needle felt: High temperature (204~ 240 degree), anti -acid, anti-alkali, high filtration precision, blow speed, low pressure drop, anti -break, anti -abrasion, mostly applied in pitch mix gas, blast furnace gas in steel factory, tail gas of white char, kiln applications, electric cooker high temperature gas. The normal specification of Nomex Filtration Felt : 400 gsm , 450 gsm , 500 gsm , 550 gsm , 600 gsm , Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt treatment . Although we can tailor produce the size of Nomex Filter Bag for different Model of dust collector , there is normal size as following :


How to choose the filter bag ?

Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags 0


The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.


The Factors that affecting the selection of the filter medium


The Select Indication of the Filter medium


A. Temperature

B. Chemical Property

C. Concentration of the dust content

D. Filter Gas Speed


Test Item & Test Standard

SL.No. Item Test Standard
1 Area Weight FZ/T60003-91
2 Air Permeability GB/T5453-1997
3 Tensile Strength GB/T3923.1-2013
4 Elongation GB/T3923.1-2013
5 Burst GB/7742.1-2005
6 Liquid Repellent GB/4745-2012


Post Treatment For Filtering Materials


Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment


Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days


Shipping way & Loading Port :


By sea / air / express


Shanghai / Ning Bo/Tianjin



Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.


Technical Service &support


Provide Solutions

Offer further technical support with extensively qualified experience

Provide Senior Technical staff for on site technical support

Professional Recommendations on dust collector operation and maintenance

Professional Supervision of filter bag installation

Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance

Analysis of filter bag life and recommendations of replenishment programs


Temperature Resistance 10mg/Nm3 Nomex Dust Collector Bags 1
