Product Details:
Payment & Shipping Terms:
|
Material: | Synthetic PP | Size: | 800X800,1100X1100mm, 1350X1350mm |
---|---|---|---|
Usage: | Press Plate Filter | Thickness: | 1.2mm-1.5mm |
Construction: | Satin,plain | Application: | Liquid Filtration |
High Light: | filter press cloth,filter press fabric |

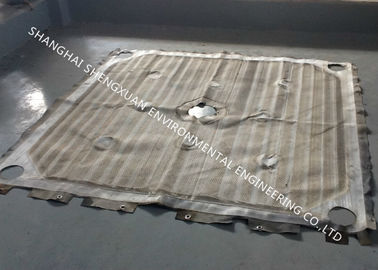

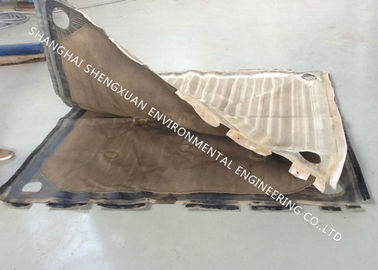

Synthetic Polyproplene woven Filter Press Filter Cloth 750AB
filter press fabrics can be used for plate and frame filter press, recessed (chamber) filter press, membrane filter press, etc. It has good filtration effect, dry filter cake, high tensile strength, fine filter cake release ability, etc.
Applications:
solid-liquid seperation in chemicals, petrol-chemical, metallurgy, mine, environment protection, pharmacy, powerstation, potash fertilizer, salt, dyestuff, pigment, food&drink, water&wastewater, etc.
In order to ensure the filter press fabrics tightness with filter plate, latex (glue) will be brushed. For filter cloth construction, we use velcro, banding, neck (butterfly type), metal hole, etc.
Specifiations
Model | Breaking Strength | Density | Thickness | Weight | Air Permeability | Weave pattern |
(N/5*20cm) | (root/10cm) | (mm) | (g/m2) | L/m2.s | ||
52l | 2608/2050 | 214.8/150.8 | 0.79 | 302.7 | 216.5 | Twill |
522 | 2104/1633 | 244/173 | 0.41 | 155 | 73.44 | Plain |
534 | 2501/1894 | 193.6/100.0 | 0.99 | 368.1 | 41.2 | Plain |
4212 | 2672/1342 | 236.4/123.2 | 1.34 | 389.4 | 85.6 | Twill |
700A | 3426.6/2819.4 | 204/106 | 0.7 | 350 | 117.9 | Plain |
700B | 4648.0/2866.6 | 188/114 | 0.59 | 280 | 254.2 | Twill |
700AB | 6865.4/416.7 | 378/235 | 1.15 | 580 | 82 | Twill+Plain |
750A(840A) | 4466/2905 | 168/131 | 0.85 | 330 | 42 | Plain |
750B(840B) | 5234/3489. | 256/141 | 0.99 | 420 | 76 | Twill |
750AB(840AB) | 6718/5421 | 333.8/204.4 | 1.36 | 489.9 | 24.5 | Plain |
840-1 | 5275/3948 | 252/146 | 0.9 | 440 | 45.5 | Twill |
840-2 | 5928/4086 | 283/142 | 1 | 490 | 40.7 | Twill |
840-3 | 6282/4858 | 311/134 | 1.1 | 520 | 27.2 | Twill |
858 | 4418/3618 | 251/124 | 0.88 | 380 | 240.7 | Twill |
4218 | 8568/5427 | 456/94 | 1.32 | 660 | 38.4 | Twill |
4422 | 2643/1514 | 181/94 | 1.18 | 480 | 17.86 | Twill |
1000A | 5585.7/4089.2 | 204/102 | 0.85 | 435 | 9.83 | Plain |
1000B | 6636/1481 | 204/110 | 0.79 | 430 | 21.49 | Twill |
1500-1 | 56283701 | 251118 | 1.42 | 725 | 29.38 | Twill |
108B | 8721/4642 | 503/133 | 1.1 | 600 | 13.6 | Double Twill |
108C | 8367/4797 | 504/177 | 1.03 | 600 | 22.96 | Satin |
Material | Item |
Breaking Strength (N/5*20cm) |
Density (Root/10cm) |
Thickness (mm) |
Weight (g/m2) |
Air Permeability (L/m2.s) |
Weave |
Polyester Filament | 60-8(130) | 1363/111.6 | 260.0/221.6 | 0.27 | 125.6 | 130.6 | Plain |
60-10(240) | 2508/958.0 | 225.6/156.0 | 0.42 | 219.47 | 36.1 | Plain | |
60-9(260) | 2202/1776 | 205.6/160.8 | 0.47 | 257 | 32.4 | Plain | |
60-7(621) | 3026/2288 | 191.2/134.0 | 0.65 | 342.4 | 37.8 | Plain | |
Polyester Staple Fiber | 5926(120-7) | 4498/4044 | 260/202 | 1.42 | 610 | 54 | Twill |
734(120-12) | 2072/1633 | 232/166 | 0.62 | 245 | 480 | Twill | |
745(120-13) | 1936/730 | 232/196 | 0.48 | 210 | 125 | Plain | |
747(120-14) | 2026/1485 | 226/158 | 0.53 | 248 | 120 | Plain | |
758(120-15) | 2594/1909 | 194/134 | 0.73 | 330 | 100 | Plain | |
3927(120-16) | 4598/3154 | 156/106 | 0.9 | 524 | 18 | Plain | |
728(120-17) | 2753/1869 | 246/310 | 0.89 | 360 | 180 | Twill | |
729 | 3180/2157 | 307/201 | 0.72 | 315 | 120 | Plain | |
208 | 2788/1930 | 360/276 | 1.43 | 400 | 280 | Twill | |
822 | 5760/3480 | 260/102 | 1.65 | 940 | 22 | Twill |
Pacakage and Delivery
Carton box, plastic knitting bags,pallet
10 days
