| Yarn Type: | E-Glass | Weight: | 450-750g/m2 |
|---|---|---|---|
| Weave Type: | Plain Weave | Max Width: | 3800mm |
| Color: | Black And Brown | Mesh Size: | 1X1 ,4X4mm |
| High Light: | Temperature Tolerance ptfe conveyor belt,3800mm conveyor belt |
||

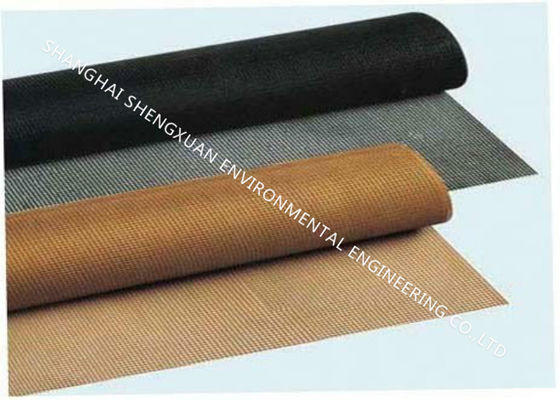

High temperature resistance PTFE impregnated fiberglass fabric open mesh conveyor belt
PTFE impregnated Fiberglass Mesh Conveyor Belt is ideally suited for conveying products within highly efficient air distribution systems allowing optimized moisture removal to take place and is commonly used within ultra violet and infra red dryer units
The open area allows maximum air flow optimizing drying times whilst its extreme properties make it a natural choice for dryer manufactures.
Parameters
| Item No. | 6001-6015 |
| Color | black,yellow,brown |
| Mesh size | 1x1,4x4,2x2,10x10mm |
| Weight of FB | 260-450GSM |
| Total weight | 430- 570GSM |
| Tesnile strenth | 1100-2000N/5cm |
| Max width | 3800mm |
| Temperature range | -70-260 Deg C |
Specifications
| Item No. | Color | Mesh Size(mm) | Weight of Fiberglass | Total weight | Max Width |
| 6001 | Brown | 1X1 | 367 g/m2 | 440 g/m2 | 3.8m |
| 6001B | Black | 1x1 | 367 g/m2 | 440 g/m2 | 3.8m |
| 6003 | Black | 4x4 | 343 g/m2 | 480 g/m2 | 3.8m |
| 6004 | Brown | 4x4 | 343 g/m2 | 475 g/m2 | 3.8m |
| 6007 | Brown | 4x4 | 417 g/m2 | 570 g/m2 | 3.8m |
| 6008 | Brown | 4x4 | 414 g/m2 | 570 g/m2 | 3.8m |
| 6012 | Black | 4x4 | 414 g/m2 | 570 g/m2 | 3.8m |
Applications of PTFE mesh conveyor belt
1, Used as various of liners to resist high temperature ,such as microwave liner,over liner,or other liners.
2, Used as stick liners intermediate.
3, Used as various conveyor belts,fusing belts,sealing belts or anywhere need resisting high temperature,non stick,chemical resistance etc.
Package of PTFE conveyor belt:
To ensure a secure package for the product, we have special package: first with bubble film inside, and then plastics cloth outside, finally packed with export carton. For the belt with the width more than 2m, we'll pack it in iron pallet which fully protect the belt from damage during transportation.
