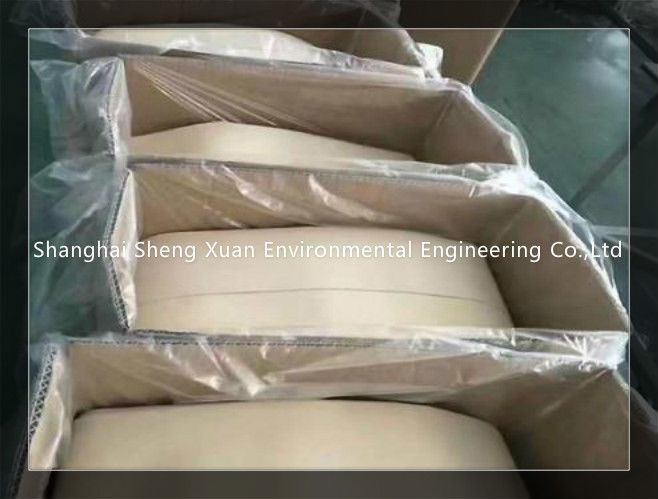

DN 130X3000mm Alloys Furnace Nomex Filter Bag

Large Image : DN 130X3000mm Alloys Furnace Nomex Filter Bag Get Best Price

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	AUSTIN FILTER
Certification:	ISO9001-2008
Model Number:	DN130X3000 MM

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	3 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Material:	Nomex Filter Fabric	Scrim:	Nomex Scrim
Bag Size:	DN130X2450 MM	Work Temp.:	204 Degree
Air Permeability:	15-30 M3/m2.m	Application:	Alloys Furnace
Name:	Fiberglass Dust Filter Bag	Filtration Efficiency:	< 10mg/Nm3
Life:	12 Months	Treatment:	PTFE Dipping And Coating
High Light:	Alloys Furnace Nomex Filter Bag , PTFE Dipping Nomex Filter Bag , Fiberglass Dust Filter Bag

Nomex filter bag DN 130X3000mm

The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.

The Factors that affecting the selection of the filter medium

The Select Indication of the Filter medium

A. Temperature

B. Chemical Property

C. Concentration of the dust content

D. Filter Gas Speed

Test Item & Test Standard

SL.No.	Item	Test Standard
1	Area Weight	FZ/T60003-91
2	Air Permeability	GB/T5453-1997
3	Tensile Strength	GB/T3923.1-2013
4	Elongation	GB/T3923.1-2013
5	Burst	GB/7742.1-2005
6	Liquid Repellent	GB/4745-2012

Post Treatment For Filtering Materials

Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment

Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days

Shipping way & Loading Port :

By sea / air / express

Shanghai / Ning Bo/Tianjin

Applications:

Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.

1. How to choose the right filter bag for your company?

Cause every filter has its own characteristics and parameters, so when we choose filter material for dust collector filter bag, we have to know the following parameters:

(1) Working temperature ( Continuous working tem / Short-term working tem)

(2) Dust diameter

(3) Gas’ chemical properties

(4) Working pressure

(5) Emission concentration

2.How to assure the product quality?

If you need , we can offer the sample for you, after your confirmation, we can produce the products according to your requirement.

3.How long can I clean and reuse a filter bag?

Filter bags are designed for one time use. Attempting to clean a bag will stretch the material. Maybe some holes will get bigger and allow dust to get through. In our company, most of the fiber is imported, we use the best raw material to ensure the quality of filter bags. Normally we can offer 2 years, 3years, 4years bags life time and even longer by your requirements.

4.Do you offer volume/distributor discounts?

Yes, we do offer volume discounts, and certainly that is based on the quantities and frequency of orders. Please feel free contact us if you want volume discounts and we will gladly offer you more details.

5.What shipments are available?

Normally, we ship goods by sea,air or express. Special requirement can also be acceptable.
