Home ProductsNomex Filter Bag

Cement Plant Nomex Filter Bag

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

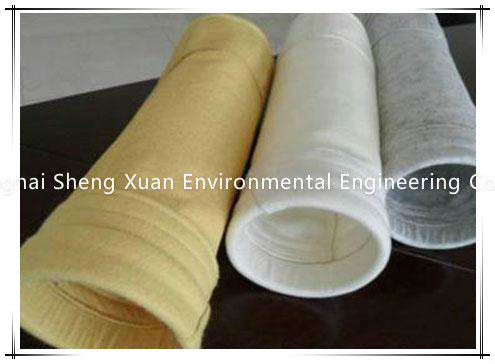

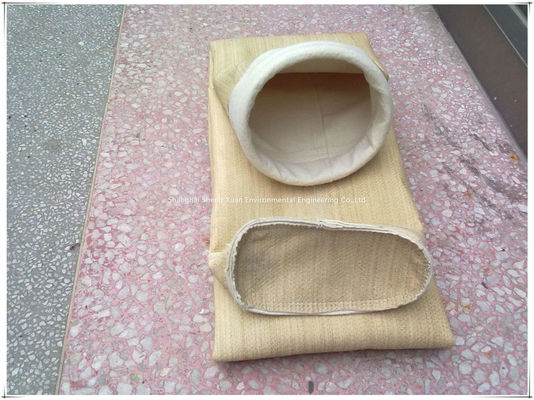

Cement Plant Nomex Filter Bag

Cement Plant Nomex Filter Bag
Cement Plant Nomex Filter Bag Cement Plant Nomex Filter Bag Cement Plant Nomex Filter Bag

Large Image :  Cement Plant Nomex Filter Bag Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: DN130X3600 MM
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: Aramid Spun Fiber Scrim: Nomex/PTFE Scrim
Bag Size: DN130X3600 MM Work Temp.: 204 Degree
Air Permeability: 15-30 M3/m2.m Application: Alloys Furnace
Name: Fiberglass Dust Filter Bag Filtration Efficiency: < 10mg/Nm3
Life: 12 Months Treatment: PTFE Dipping And Coating
Application: Cement Plant
High Light:

Cement Plant Nomex Filter Bag

,

Oil Repellent Nomex Filter Bag

,

PTFE Scrim Nomex Filter Bag

Nomex /Aramid filter bag DN 130X3600mm used in cement plant



Test Item & Test Standard

SL.No. Item Test Standard
1 Area Weight FZ/T60003-91
2 Air Permeability GB/T5453-1997
3 Tensile Strength GB/T3923.1-2013
4 Elongation GB/T3923.1-2013
5 Burst GB/7742.1-2005
6 Liquid Repellent GB/4745-2012



Post Treatment For Filtering Materials



Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment



Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days



Shipping way & Loading Port :



By sea / air / express



Shanghai / Ning Bo/Tianjin



Applications:

Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.



Technical Service &support



Provide Solutions

Offer further technical support with extensively qualified experience

Provide Senior Technical staff for on site technical support

Professional Recommendations on dust collector operation and maintenance

Professional Supervision of filter bag installation

Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance

Analysis of filter bag life and recommendations of replenishment programs



1. How to choose the right filter bag for your company?

Cause every filter has its own characteristics and parameters, so when we choose filter material for dust collector filter bag, we have to know the following parameters:

(1) Working temperature ( Continuous working tem / Short-term working tem)

(2) Dust diameter

(3) Gas’ chemical properties

(4) Working pressure

(5) Emission concentration



2.How to assure the product quality?

If you need , we can offer the sample for you, after your confirmation, we can produce the products according to your requirement.



3.How long can I clean and reuse a filter bag?

Filter bags are designed for one time use. Attempting to clean a bag will stretch the material. Maybe some holes will get bigger and allow dust to get through. In our company, most of the fiber is imported, we use the best raw material to ensure the quality of filter bags. Normally we can offer 2 years, 3years, 4years bags life time and even longer by your requirements.



4.Do you offer volume/distributor discounts?

Yes, we do offer volume discounts, and certainly that is based on the quantities and frequency of orders. Please feel free contact us if you want volume discounts and we will gladly offer you more details.



5.What shipments are available?

Normally, we ship goods by sea,air or express. Special requirement can also be acceptable.



Cement Plant Nomex Filter Bag 0









Cement Plant Nomex Filter Bag 1
