25 Meters Length Pneumatic Polyester Air Slide Fabric

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

25 Meters Length Pneumatic Polyester Air Slide Fabric

25 Meters Length Pneumatic Polyester Air Slide Fabric
25 Meters Length Pneumatic Polyester Air Slide Fabric 25 Meters Length Pneumatic Polyester Air Slide Fabric 25 Meters Length Pneumatic Polyester Air Slide Fabric

Large Image :  25 Meters Length Pneumatic Polyester Air Slide Fabric Get Best Price

Product Details:
Place of Origin: Made In China
Brand Name: Austin Filter
Certification: ISO
Model Number: PET5.0 mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 meters
Price: Negotiable
Packaging Details: Roll form, 50 meters per roll, Pallet
Delivery Time: 15 days
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 500 meters per day
Detailed Product Description
Material: Polyester Weight: 3.5kg/m2
Width: 270,330,450,550,900mm Air Peremabiltiy: 3.2-10 M3/m2/m
Application: Cement Silos Construction: Solid Weave 4 Ply
Structure: Belt Conveyor Material Feature: Heat Resistant
Usage: Powder Filter Type: Woven Filter
Description Of Goods: 100% Polyester Air Slide Fabric Aeration Fluidization Cloth Temperature: 150
Warranty: 1 Year
High Light:

air slide fabric

,

air slide belt

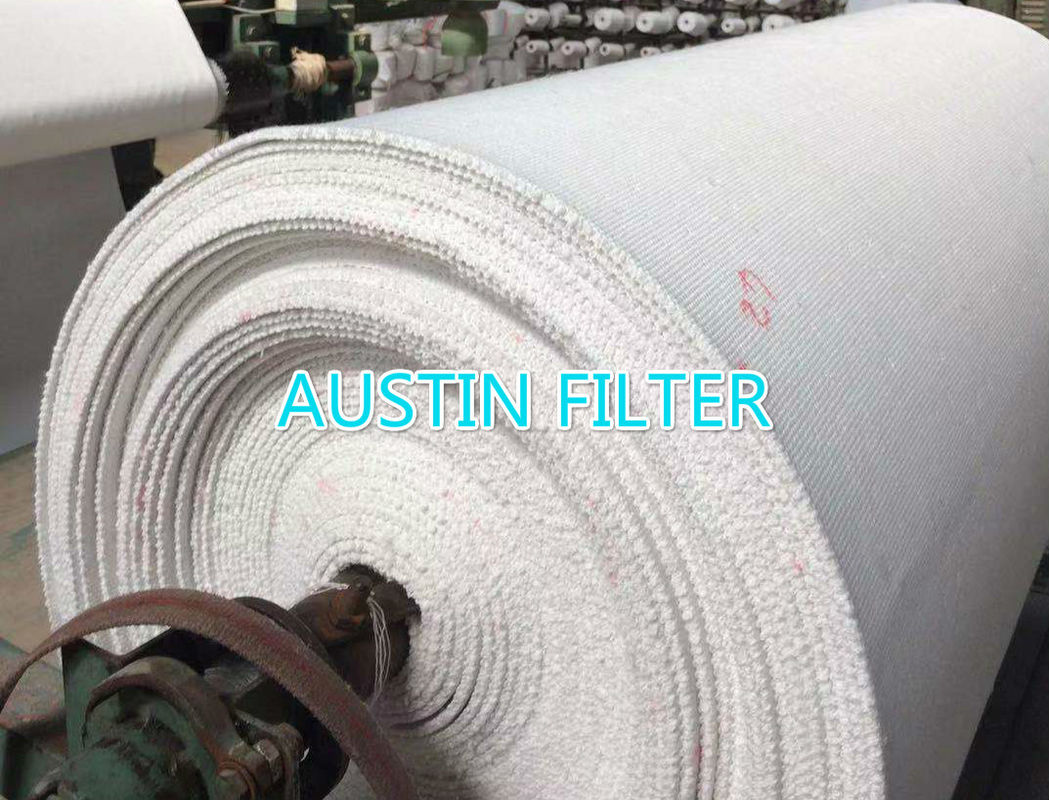

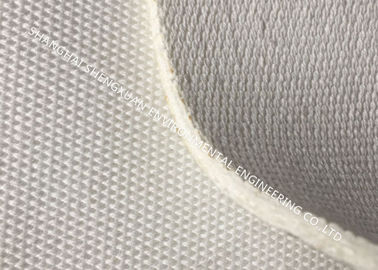

Pneumatic Air Slide Canvas Polyester Spun Fiber Materials 25 meters length 5mm thickness



Air slide fabrics are used for pneumatic conveying of fine dry products such as cement and other raw materials powder. Air slide fabric is a solid construction cloth used for powder transportation.



These Industrial Air Slide canvas are preferred by many district inustries to cater their wide requirements. The multi-ply structure of the fabrics with varied weight, thickness and permeability enables uniformity in the flow effect on the slide surface, greater mechanical resistance to abrasion and tensile strength and a vast porosity range. Air Slide Belt Fabric produced by us is best suitable customers’ diversified needs and can be obtained at a very cost effective price that suits to their budget.



Applications
Cemical Industry : Thomas Meal (Fertilizer), Rubber Compounds, Sinter Dust, Catalysts Sodium Sulfate, Soap Powder.



Parameters

Item Air slide fabric, air slide belt, conveyor belts, canvas belt,aeration pads
Material Polyester spun, filament, Nomex
Thickness 4mm,5mm,6mm,8mm,10mm
Weight (g/m2) 3500-7000
Width 250,270,330,450,500550,1200,max to 2200mm
Air permeability 3-20 m3/m2/min
Breaking strength(N/mm) > 5000N
Operating temp. 130-400 Deg C





Package and details



50 meters per roll,plastic bag packed
