carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

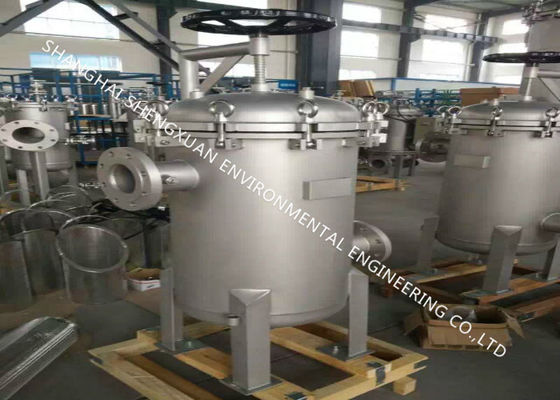

carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure

carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure
carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure

Large Image :  carbon steel Multi Bag Filter Housing Sanitary With 150PSI Working Pressure Get Best Price

Product Details:

Place of Origin: China
Brand Name: Austin Filter
Certification: ISO9001
Model Number: All 4 size

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 20 Sets per day
Detailed Product Description
Material: Carbon Steel Application: Water Filtration Industries
Filtration Accuracy: 0.5-1500 Micron Package: Wood Case
Delivery Time: 10 Days Gurantee Time: 12-24 Month
High Light:

bag filter vessel

,

stainless steel filter housing



Sanitary SS 304 Material Multi Bag Water Filter Housing with 150PSI Working Pressure





Bag type filter is a pressure filtration device ,which is mainly consists of filtration cylinder,cylinder cover and fast open structure,stainless steel strengthen filtration bag,etc.when filtrate flows from side entrance of filter shell into the pipe bag,The bag itself is installed inside the enhanced basket ,liquid penetrates bag with required fineness grade that can be provided with qualified filtrate,impurity particles were bag intercept.It is very easy to replace the filtration bags,there is hardly no material to be consumed.



Working principle



The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag. The impurities will be blocked into the filter bag.The filter bag can be reused repeatedly after washing or cleaning. It is easy to replace the filter bags.

The filter is features of no material consumption and low operation cost



Applications

Bag filters are widely used in paint, beer, vegetable oil, pharmaceutical, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration.



Specifications



Model Bag Qty

Filtration area

(m2)

Max Flow(t/h)

Inlet Flange

(mm)

Working pressure
DB-2P2S 2 1 70 DN50













0.5Mpa

DB-3P2S 3 1.5 105 DN80
DB-4P2S 4 2 140 DN100
DB-5P2S 5 2.5 175 DN150
DB-6P2S 6 3 210 DN150
DB-7P2S 7 3.5 245 DN150
DB-8P2S 8 4 280 DN150
DB-10P2S 10 5 350 DN200
DB-12P2S 12 6 420 DN200
DB-14P2SL 14 7 490 DN200
DB-16P2SL 16 8 560 DN250
DB-18P2SL 18 9 630 DN250
DB-20P2SL 20 10 770 DN250





Delivery and package



Package Details:wooden boxes into container Bag filter housing

Delivery Time:Shipped in 15 days



FAQ

  1. Can you produce the bag filter house according to our drawing or samples ?

    Yes, of course we can



  2. Can you accept print our Logo on the valve handle cover ?

    Yes, we can if you need



  3. How about the delivery time ?

    With the standard products, normally delivery time will be 10 days
