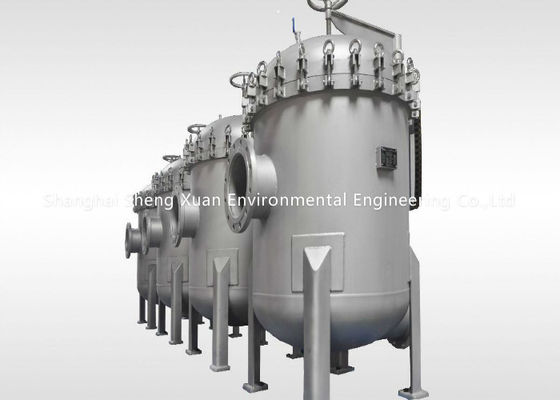

DN200 840T/H Aqua Filtration SS316 Bag Filter Housing

DN200 840T/H Aqua Filtration SS316 Bag Filter Housing
DN200 840T/H Aqua Filtration SS316 Bag Filter Housing

Large Image :  DN200 840T/H Aqua Filtration SS316 Bag Filter Housing Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO 9001-2008
Model Number: SX-2P2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 sets per day
Detailed Product Description
Material: SS 304/316 Bag Qty: 2-24 Pcs Filter Bag
Bag Size: DN7"X32" Filtering Area: 1-12 M2
Max Flow: 70-840 T/h Inlet: DN50-DN200
Working Pressure: 0.5Mpa Connection: Flange
Filter Element: Bag
High Light:

SS316 Bag Filter Housing

,

Aqua SS Bag Filter Housing

,

840T/H Bag Filter Housing

Stainless Steel Multi Bag Filter Housing for aqua filtration



Austin Filtration has been manufacturing bag filter housings for many years. Bag Filter Housings is also known as Bag Filter Vessel and Industrial Filter Housings, Stainless Steel Bag Filter Housings. Bag Filter Housings consists of filter body, filter bag, stainless steel mesh, etc. The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via the inlet and goes through the filter bag.


  Then the liquid permeates the filter bag to obtain qualified liquid while the impurities are blocked in the filter bag. The filter bag can be reused repeatedly after washing or cleaning. And also, the filter bag is easy to change. With no material consumption, this filter has a low operation cost.

DN200 840T/H Aqua Filtration SS316 Bag Filter Housing 0
