Product Details:
Payment & Shipping Terms:
|
| Name: | Anti-static Air Dust Filter Cartridge For Painting Room Dust Collecting | Filter Media: | Polyester,viscose |
|---|---|---|---|
| Work Efficiency: | 99.99% | Work Temp: | 80-130 Degree C |
| Construction: | Pleated | Package: | Pallet |
| Highlight: | pleated polyester filter cartridge,dust filter cartridge |
||

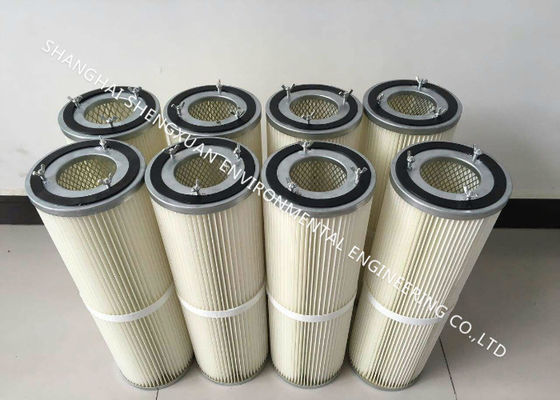

Anti-static air dust filter cartridge for painting room dust collecting
Descriptions
Anti static filter cartridge currently is one kind by using metal shielding effect filter,metal shielding has very high electrical conductivity,its effect is anti-static,and nutrizing there covered powder electricity,make powder difficult to be attached on the f lter medium,make powders easy drop off,and no clog,increase there covery efficiency.
Advantage
The life span is longer than the fibre cartridge for 3 to 5 times Recycling powder is difficult to be attached to the media,make air flow volume to be increased as high as 30%; easy cleaning,low powder holding,common fiber filter holds recycled powder up to8 kg above,and metal type anti static cartridge keeps only 1-2 kg powder;
Metal anti static filter cartridge resists anti static fire,has explosion-proof function
Material Data
| Item | Description | Data |
| 1 | Weight(g/m2) | 240 |
| 2 | Thickness(mm) | 0.6 |
| 3 | Porosity(S.l/m2) | 180 |
| 4 | Filtration efficiency % | 99.99% |
| 5 | Filtration precision | 0.1-5 micron |
| 6 | Working temp. | 130 degree |
| 7 | Filter pressure | 0.5Mpa |
Model size
| Model | Specification | Air flow | Initial resistance pressure | Working Temp. | Filtration area | Filtration efficiency |
| 3266 | DN 324X660 | 800m3/h | 150Pa | 95-135 | 9.4 m2 | 99.99% |
| 3566 | DN 350X660 | 800m3/h | 150Pa | 95-135 | 11.8m2 | 99.99% |
| 3290 | DN325X900 | 1000m3/h | 150Pa | 95-135 | 12.8m2 | 99.99% |
| 3590 | DN350X900 | 1000M3/h | 150Pa | 95-135 | 14m2 | 99.99% |
Features:
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical
processing, pharmaceutical and construction industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized
metal inner core allows good airflow.
FAQ
1. Q:Are you a factory or trading company?
A:We are a factory
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Suzhou City, Jiangsu Province, China, about 1.5 hours from Shanghai and
40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:How does your factory do regarding quality control?
A:Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
