Alumina Transportation 6mm Thickness Air Slide Cloth

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

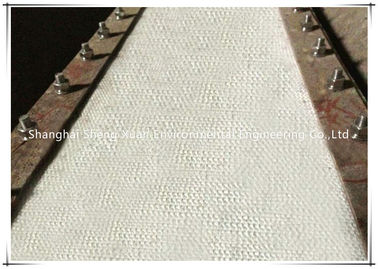

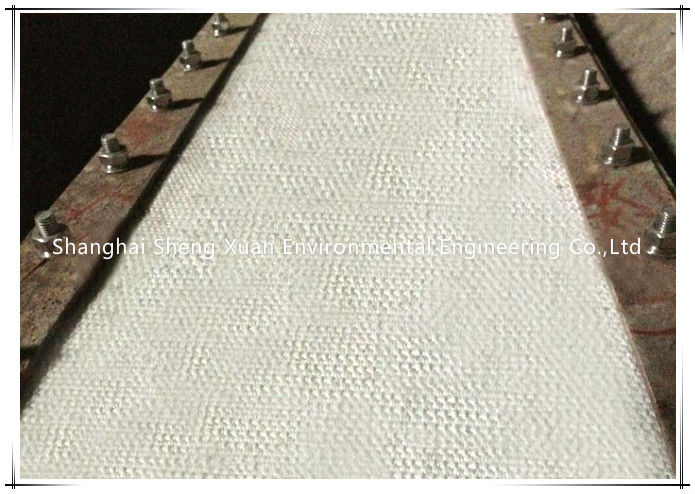

Alumina Transportation 6mm Thickness Air Slide Cloth

Alumina Transportation 6mm Thickness Air Slide Cloth
Alumina Transportation 6mm Thickness Air Slide Cloth

Large Image :  Alumina Transportation 6mm Thickness Air Slide Cloth Get Best Price

Product Details:
Place of Origin: Made In China
Brand Name: Austin Filter
Certification: ISO
Model Number: B270
Payment & Shipping Terms:
Minimum Order Quantity: 50 meters
Price: Negotiable
Packaging Details: Roll form, 50 meters per roll, Pallet
Delivery Time: 15 days
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 500 meters per day
Detailed Product Description
Material: Polyester Yarn Construction: 4 Ply Solid Weave
Weight: 4.0 Kg/m2 Width: 270,330,450,550,900mm
Air Peremabiltiy: 3.2-10 M3/m2/m Application: Cement Processing
Packing: 50 Meters Length Color: White
High Light:

air slide belt

,

polyester conveyor belt

B270 airslide belt conveyor for horizontal belt conveyor 6mm thickness



Austin Industries  fluidization fabric  is ideal for the alumina transportation : many smelters are using it in their airslides. It improves alumina conveying as buffer silos, siphon smelter pots and fluidized bottom for filters.



Our quality of fabrics could be cut in any shape,plate or conical and fitted any place.





Working principle of air slide fabric


In cement plant
The Air slide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.





Specifications:



Raw Material =100% spun fiber polyester

Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O

Pressure: 2000pa for middle air resistance

4000pa for high air resistance

Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%

Max Width: 2800mm

Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C





Alumina Transportation 6mm Thickness Air Slide Cloth 0
