Product Details:
Payment & Shipping Terms:
|
| Material: | Glass Fiber | Mesh Size: | 0.5-10mm |
|---|---|---|---|
| Color 1: | Brown | Color 2: | White |
| Color 3: | Black | ||
| High Light: | PTFE coated conveyor belt,Glass Fiber mesh conveyor belt |
||

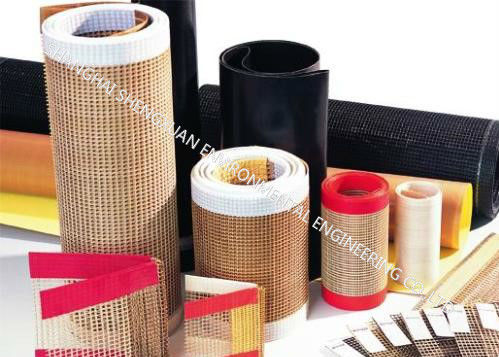

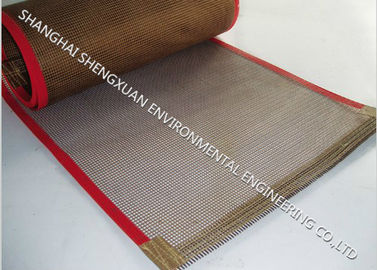

PTFE() Coated Open Mesh Belt
PTFE() coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE() resin to make it into various of PTFE() conveyor belt.
Usage:
PTFE() open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.
Properties:
1. Outstanding temperature resistance (from -170ºC to +260ºC)
2. Resistant to corrosive agents
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. High dielectric strength
7. Dimensional stability
8. Resistance to UV, IR and HF
9. Non-toxic
10. Superior tracking
Styles and Specifications:
| Item | Mesh size | Material | Thickness | Weight |
Temperature Resistance |
Max width |
Tensile strength |
| SX601 | 1x1mm | Fiberglass | 0.5mm | 370g/m2 |
-70-260 degree C |
4000mm | 310/290N/cm |
| SX602 | 2x2mm | Fiberglass | 0.7mm | 450g/m2 |
-70-260 degree C |
4000mm | 350/310N/cm |
| SX603 | 4x4mm | Fiberglass(black) | 1.0mm | 400g/m2 |
-70-260 degree C |
4000mm | 390/320N/cm |
| SX604 | 4x4mm | Fiberglass | 1.0mm | 450g/m2 |
-70-260 degree C |
4000mm | 390/320N/cm |
| SX607 | 4x4mm | Fiberglass+Kevlar | 1.2mm | 600g/m2 |
-70-260 degree C |
4000mm | 895/370N/cm |
| SX608 | 4x4mm | Fiberglass | 1.2mm | 580g/m2 |
-70-260 degree C |
4000mm | 560/360N/cm |
| SX610 | 4x4mm | Kevlar | 1.0mm | 500g/m2 |
-70-260 degree C |
4000mm | 900/600N/cm |
Applications
Photo voltaic solar industry
Packing industry
Food industry
Grinding and Abrasive
Automotive
Flooring Industry
Pharmaceutical industry
Environmental Protection
Chemical Engineering
Machinery field
Electron Industry
