|Material:||100% Acylic Needle Punched Filter Fabric||Scrim:||100% Acylic Scrim|
|Bag Size:||DN 150x 6000 Mm||Work Temp.:||125 Degree|
|Air Permeability:||15-30 M3/m2.m||Application:||All Kinds Dust Collector|
|Name:||Acylic Dust Filter Bag||Filtration Efficiency:||< 20mg/Nm3|
|Life:||24 Months||Treatment:||PTFE Dipping And Coating|

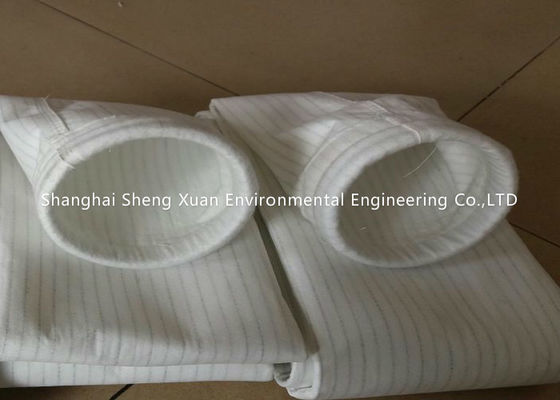

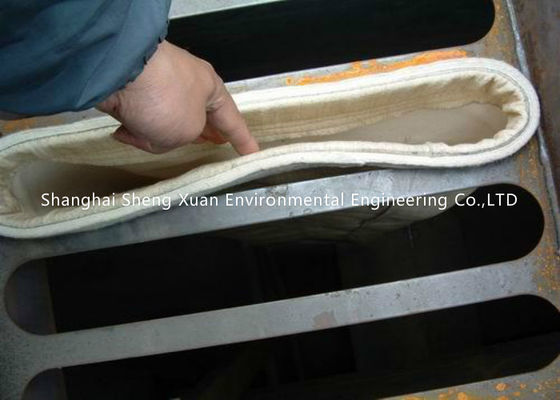

125 Degree Dust Filter Bags,
Acrylic Scrim Dust Filter Bags,
PTFE Dipping Dust Filter Bags
Industrial dust collector filter bags are used in multiple styles of industrial dust collection systems that range from pulse-jet, plenum-pulse, reverse air, and shaker baghouses. Filter bags aid in collecting dust particulate which helps to improve air quality, eliminate potential fire hazards, and keep dust from negatively affecting the product quality.
Filter bags are used in industries such as woodworking, cement, chemicals, construction, mining & minerals, agriculture, metalworking and much more.
|Article name||Weight||Thickness||Air permeability||Working temp.|
|Polyester||450-700gsm||1.6-2.2mm||8-18 m3/m2.m||130 degree|
|Polypropylene||400-600gsm||1.8-2.2mm||8-20 m3/m2.m||80 degree|
How to choose the filter bag ?
The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Test Item & Test Standard
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Complexly chemical working conditions, for dust treatments and recycling.
