Product Details:
Payment & Shipping Terms:
|
| Material: | PP Multifilaments | Size: | 800X800,1100X1100mm, 1350X1350mm |
|---|---|---|---|
| Usage: | Plate Filter Press | Thickness: | 1.2mm |
| Construction: | Satin | Application: | Liquid Filtration |
| High Light: | filter press cloth,pp filter cloth |
||

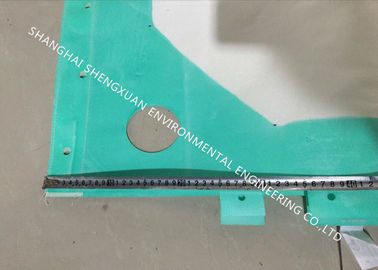

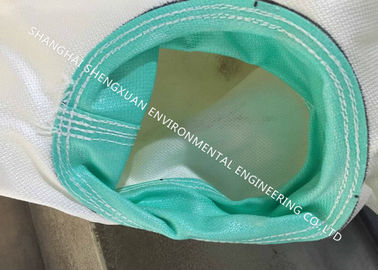

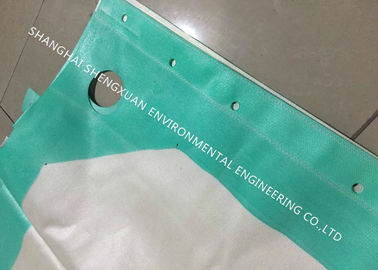

PP 750 industrial woven filter press fabrics
filter press fabrics can be used for plate and frame filter press, recessed (chamber) filter press, membrane filter press, etc. It has good filtration effect, dry filter cake, high tensile strength, fine filter cake release ability, etc.
Applications:
solid-liquid seperation in chemicals, petrol-chemical, metallurgy, mine, environment protection, pharmacy, powerstation, potash fertilizer, salt, dyestuff, pigment, food&drink, water&wastewater, etc.
In order to ensure the filter press fabrics tightness with filter plate, latex (glue) will be brushed. For filter cloth construction, we use velcro, banding, neck (butterfly type), metal hole, etc.
Specifiations
| Model | Breaking Strength | Density | Thickness | Weight | Air Permeability | Weave pattern |
| (N/5*20cm) | (root/10cm) | (mm) | (g/m2) | L/m2.s | ||
| 52l | 2608/2050 | 214.8/150.8 | 0.79 | 302.7 | 216.5 | Twill |
| 522 | 2104/1633 | 244/173 | 0.41 | 155 | 73.44 | Plain |
| 534 | 2501/1894 | 193.6/100.0 | 0.99 | 368.1 | 41.2 | Plain |
| 4212 | 2672/1342 | 236.4/123.2 | 1.34 | 389.4 | 85.6 | Twill |
| 700A | 3426.6/2819.4 | 204/106 | 0.7 | 350 | 117.9 | Plain |
| 700B | 4648.0/2866.6 | 188/114 | 0.59 | 280 | 254.2 | Twill |
| 700AB | 6865.4/416.7 | 378/235 | 1.15 | 580 | 82 | Twill+Plain |
| 750A(840A) | 4466/2905 | 168/131 | 0.85 | 330 | 42 | Plain |
| 750B(840B) | 5234/3489. | 256/141 | 0.99 | 420 | 76 | Twill |
| 750AB(840AB) | 6718/5421 | 333.8/204.4 | 1.36 | 489.9 | 24.5 | Plain |
| 840-1 | 5275/3948 | 252/146 | 0.9 | 440 | 45.5 | Twill |
| 840-2 | 5928/4086 | 283/142 | 1 | 490 | 40.7 | Twill |
| 840-3 | 6282/4858 | 311/134 | 1.1 | 520 | 27.2 | Twill |
| 858 | 4418/3618 | 251/124 | 0.88 | 380 | 240.7 | Twill |
| 4218 | 8568/5427 | 456/94 | 1.32 | 660 | 38.4 | Twill |
| 4422 | 2643/1514 | 181/94 | 1.18 | 480 | 17.86 | Twill |
| 1000A | 5585.7/4089.2 | 204/102 | 0.85 | 435 | 9.83 | Plain |
| 1000B | 6636/1481 | 204/110 | 0.79 | 430 | 21.49 | Twill |
| 1500-1 | 56283701 | 251118 | 1.42 | 725 | 29.38 | Twill |
| 108B | 8721/4642 | 503/133 | 1.1 | 600 | 13.6 | Double Twill |
| 108C | 8367/4797 | 504/177 | 1.03 | 600 | 22.96 | Satin |
Pacakage and Delivery
Carton box, plastic knitting bags,pallet
10 days
FAQ
A: We have own fabric and bag factory. also we have professional trading staffs.
A: Generally it is 3-5 days if the goods are in stock after the receipt of your money. . or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample and need to charge
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Contact Person: Mr. Zhang
Tel: +8613917877783
