Home ProductsIndustrial Filter Cloth

PPS / NOMEX filter mediaFor Dust Collector Bag Filter Making

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

PPS / NOMEX filter mediaFor Dust Collector Bag Filter Making

PPS / NOMEX filter mediaFor Dust Collector Bag Filter Making
PPS / NOMEX filter mediaFor Dust Collector Bag Filter Making PPS / NOMEX filter mediaFor Dust Collector Bag Filter Making

Large Image :  PPS / NOMEX filter mediaFor Dust Collector Bag Filter Making Get Best Price

Product Details:

Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: PPS/PTFE

Payment & Shipping Terms:

Minimum Order Quantity: 50 meters
Price: Negotiable
Packaging Details: Roll form , 100 meter per roll.
Delivery Time: 10 days
Payment Terms: T/T, D/A, D/P
Supply Ability: 2000 meter per day
Detailed Product Description
Material: NOMEX,PPS,PTFE And P84 Weight: 400-600 Gsm
Scrim: Woven Filter Cloth Width: Max 2300mm
Thickness: 1.8-2.2 Mm Usage: Dust Collector Filter Bags
High Light:

dust collector filter cloth

,

industrial filter fabrics

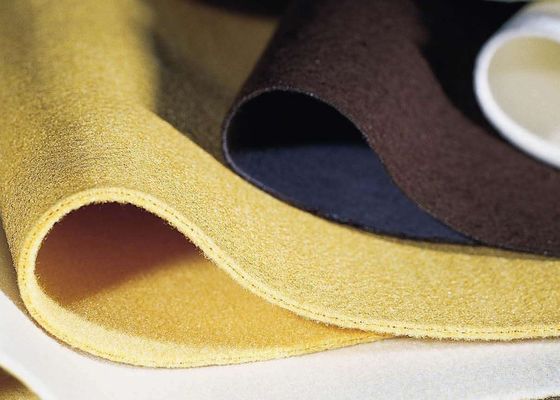

PPS/NOMEX/PTFE/P84 Industrial Filter cloth for dust collector bag filter making



High temperature filtration material is made by high temperature resistance chemical fibers.According to different materials,this series can satisfy any flue gas filtration requirement below the temperature 260C.This series has good abrasion and folding resistance,and some also good acid,alkali resistance and hydro resistance.





widely used in the field of cement kiln,blast-furnace, sinter fume in steel industry,burning coal boiler of power plant,chemical industry,asphalt plant,carbon black industry and waste incineration,etc.



Applications:



1) The fume and smoke treatment and particle removing system in metallurgy plant
2) Smoke filtration in garbage burning, coal-feed boiler,power plant
3) Asphalt concrete mixture, cements, ceramics, building materials
4) Dust treatment, purification and collection in electronics, mining, flour and timber processing.



How to choose the filter bag ?



The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.



Parameters



Article Name Aramid needled punched
Ingredients Fiber 100% Aramid
Scrim 100% Aramid woven cloth
Weight g/m2 500
Thickness mm 1.8-2.0
Density g/m³ 0.24
Permeability L/dm2.min 150
Tensile breaking
strength(N/5cm)
Warp ≥800
Weft ≥1000
Elongation @200N/5cm Warp <5
Weft <5
Maximum shrink
of 90 mins
Temperature(°C) 250
% ≤1
Service Temperature(°C) Continuous 200
Instant 240
Finishing Singeing, calendaring
