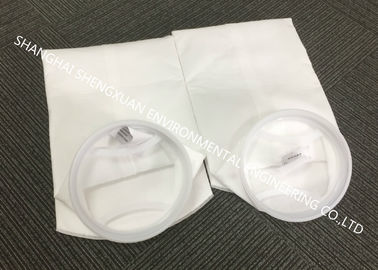

Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing

Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing
Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing

Large Image :  Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: DN 180X810MM
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: 50 pcs /box ( 7"X32"), 100 pcs/box(7“x16")
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 pcs/ days
Detailed Product Description
Material: Polyester /PP Non Woven Fabric Micron Filtration: 0.5-200 Micron
Bag Size: 7"x17",7"x32" Seam Treatment 1: WS-Fused Seam
Seam Treatment 2: SE-Stitched Seam Bottom Shape1: R-Semi-circle
High Light:

liquid filter bag

,

high efficiency filter bags

PP/PE fully welded filter bag used for multi bag filter housing


We supply you with various of PP, PE,NMO ,Stainless steel wire mesh and PTFE filter bags of silk materials, to meet your strictly requirements for different filtration processes. Our micron grade liquid filter bag can economically remove any solid form tiny particles in the liquid flow. The solids in liquid can be accurately fast, easily blocked inside the filter bag to keep liquid clean. The filter bag structure is strong so that the liquid can keep high speed flow.The selection of the filter bag should be based on the liquid properties, and the chemical conditions at that time.

Features
Seam treatment: ultrasonic welded or thread stitched
Seal ring options: Polypropylene or polyester SDS, STS, Zinc coated steel or stainless steel snap fit rings.
Ring attachment: Ultrasonic welded or thread stitched
Micron range:1,3,5,10,25,50,75,100,125,150,200 micron are available.
Efficiency: Nominal rating, 85% contaminant particle retention efficiency with a single pass.
Surface treatment: Fiber migration and extractable free glazed media surface treatment.
Media grade: Exclusively FDA compliant media , silicon free, and oil free.
Optimum replacing pressure differential 0.10 Mpa, Max 0.18 Mpa
Broad chemical compatibilities.

Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing 0

Technical Specifications

Bag size Filter Area(m2) Volume(Litre) Max.flow(m3/h Diameter Length
P1S 0.25 7.9 20 7” 17”
P2S 0.5 17 40 7” 32”
P3S 0.08 1.3 6 4” 9”
P4S 0.15 2.5 12 4” 15”
The above dimension meet international standard.We also supply bags filter as per customers’ special requirements.


Chemical Compatibility

Filter media Acids Bases Solvents Oxidizing Temp.
Polyester Good Good Excellent Limited 150-170
Polypropylene Excellent Excellent Good Excellent 90-110
Nylon Fair Good Excellent Fair 150-170
PTFE Excellent Excellent Excellent Excellent 250-300


Micron/Mesh Conversion Table( Nylon /NMO)

Micron 1000 840 710 590 500 420 350 300 250 200 180 150
Mesh 18 20 25 30 35 40 45 50 60 70 80 100



Micron 100 90 75 60 53 44 37 30 20 15 10 5
Mesh 150 170 200 230 270 325 400 500 625 1000 1250 2500



Applications:
Auto coating & paint
Water purification& processing
Pharmaceutical
Food& beverage
Bulk &fine chemicals
Electronics



Shipping way & Package details :

By sea / air / express

Shanghai / Ning Bo/Tianjin

Carton Box Dimension: 40cmx50cm x60 cm
Gross weight: 12 kgs per box
Qty inside: 100 pcs P1S

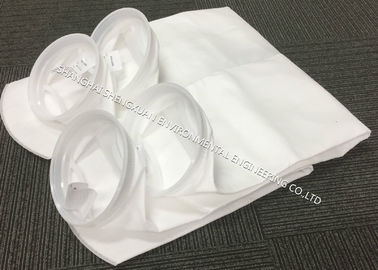

 Ultrasonic Welded PE / PP Filter Bag Economical For Multi Bag Filter Housing 1
How to replace the filter bag

  1. Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).

  2. Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.



The principle filtration --- liquid filter bag filtration
This kind filter is pressure filtration, the whole system includes three parts: bag filter housing,supporting basket and filter bags. The flow materials enter to the top of the filter housing, and flow the inside of the filter bag to the outer side of the filter bag, whole materials are uniformly distributed on the surface.The particles in the liquid are captured inside of the filter bag, no leakage, easy operation, high efficiency, big amount materials can be treated, filter bag with long life span. It is energy saving products in liquid filtration industry, can be applied for any kinds of preliminary , middle and fine filtration.The filtration system design needs to consider process conditions such as working temperature, pressure , viscosity, flow rate, impurity types, contents and particles size and so on , as well as storage volume, opening method, planned filter bag replacement frequency and production costs.
