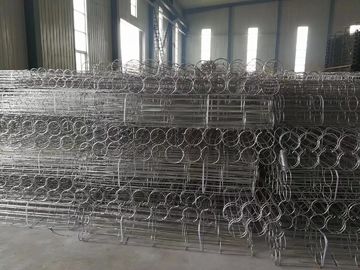

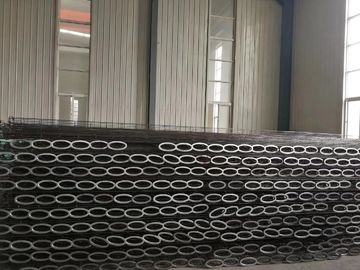

Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube

Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube
Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube

Large Image :  Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: DN 125x 2450mm
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: SS frame
Delivery Time: 10-15 days
Payment Terms: T/T
Supply Ability: 800 pcs per day
Detailed Product Description
Material: Carbon Steel Application: Dust Collectors
Type: Round Size: Customized
Wire Diameter: 3.5mm Delivery Time: 20 Days
High Light:

dust collector cage

,

bag supporting cages



Industrial dust bag house collector bag filter cages with venturi tube



Specifications:





Material of bag filter cage carbon steel or SS304,316,316L
Type of bag filter cage Flat ,oval,cylindrical,envelop
Type of the horizontal bar Round ring , star ,envelop or oval
surface treatment zinc-galvanization ,silicon coating,polishing
style of connection Clamp, chuck, claw join connection
Nos of wires 8,10,12,16,20,24
DN of the longitudinal wire DN3mm, 3.2mm, 3.5mm, 3.8mm 4mm



The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client



Production Standard



1. the support rings and vertical wires must be kept even distribution and with enough intensity and stiffness to against the air pressure during filtration, meanwhile, it also can avoid damage and distortion effectively during transportation.

2. the welding spot on filter cages must be firm without sealing-off, rosin joint and missing solder.

3. the surface of cages must be smooth and flatness, no welding scar, uneven and burr.

4. the spring type filter cages must be kept enough wires and flexibility to ensure even space after draw away.

5. it is necessary to do anti-corrosive processing, such as galvanizing, spraying and painting. if used for high temperature, it must meet this request.



Round Shape Industrial Filter Bag Cage , Dust Collector Cage With Venturi Tube 0
