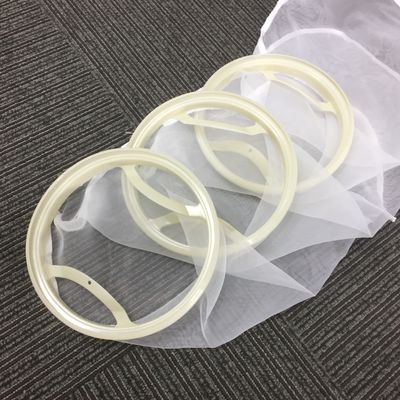

Nylon Filter Bag Welded With Plastic Ring

large.img.alt
small.img.alt

Large Image :  Nylon Filter Bag Welded With Plastic Ring Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: DN 180X810MM
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: 50 pcs /box ( 7"X32"), 100 pcs/box(7“x16")
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 pcs/ days
Detailed Product Description
Material: Nylon NMO Micron Filtration: 20-2000 Micron
Bag Size: 7"x17",7"x32" Seam Treatment 1: WS-Fused Seam
Seam Treatment 2: SE-Stitched Seam Bottom Shape1: R-Semi-circle
Bottom Shape 2: V-Traingle Seal Ring: SS Ring
High Light:

monofilament filter bags

,

high efficiency filter bags

20-2000 micron rated Nylon filament bag filters welded with plastic ring





The NMO nylon mono filament mesh filter bag used for the absolute accuracy of the surface.They use of the a single fiber mesh filter made of woven textiles.Non-deformation of the fiber in accordance with the textile design into a specific network, and increase fusion welding to increase its strength.To filter impurities trapped in the material surface direclty.Absolute precise surface filtration, absolute rating filtration material , single filament fiber structured non deformed fiber . The advantage is the filtration net can be reused after using and low consumption. Such type of sieve mesh is 25,37,50,80,100,150,200,250,300,400,600,800 and 1200 microns.

Features
Seam treatment: ultrasonic welded or thread stitched
Seal ring options: Polypropylene or polyester SDS, STS, Zinc coated steel or stainless steel snap fit rings.
Ring attachment: Ultrasonic welded or thread stitched
Micron range:1,3,5,10,25,50,75,100,125,150,200 micron are available.
Efficiency: Nominal rating, 85% contaminant particle retention efficiency with a single pass.
Surface treatment: Fiber migration and extractable free glazed media surface treatment.
Media grade: Exclusively FDA compliant media , silicon free, and oil free.
Optimum replacing pressure differential 0.10 Mpa, Max 0.18 Mpa
Broad chemical compatibilities.

Nylon Filter Bag Welded With Plastic Ring 0

Technical Specifications

Bag size Filter Area(m2) Volume(Litre) Max.flow(m3/h Diameter Length
P1S 0.25 7.9 20 7” 17”
P2S 0.5 17 40 7” 32”
P3S 0.08 1.3 6 4” 9”
P4S 0.15 2.5 12 4” 15”
The above dimension meet international standard.We also supply bags filter as per customers’ special requirements.


Chemical Compatibility

Filter media Acids Bases Solvents Oxidizing Temp.
Polyester Good Good Excellent Limited 150-170
Polypropylene Excellent Excellent Good Excellent 90-110
Nylon Fair Good Excellent Fair 150-170
PTFE Excellent Excellent Excellent Excellent 250-300


Micron/Mesh Conversion Table( Nylon /NMO)

Micron 1000 840 710 590 500 420 350 300 250 200 180 150
Mesh 18 20 25 30 35 40 45 50 60 70 80 100



Micron 100 90 75 60 53 44 37 30 20 15 10 5
Mesh 150 170 200 230 270 325 400 500 625 1000 1250 2500



Applications:
Auto coating & paint
Water purification& processing
Pharmaceutical
Food& beverage
Bulk &fine chemicals
Electronics



Shipping way & Package details :

By sea / air / express

Shanghai / Ning Bo/Tianjin

Carton Box Dimension: 40cmx50cm x60 cm
Gross weight: 12 kgs per box
Qty inside: 100 pcs P1S


How to replace the filter bag

  1. Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).

  2. Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
