Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

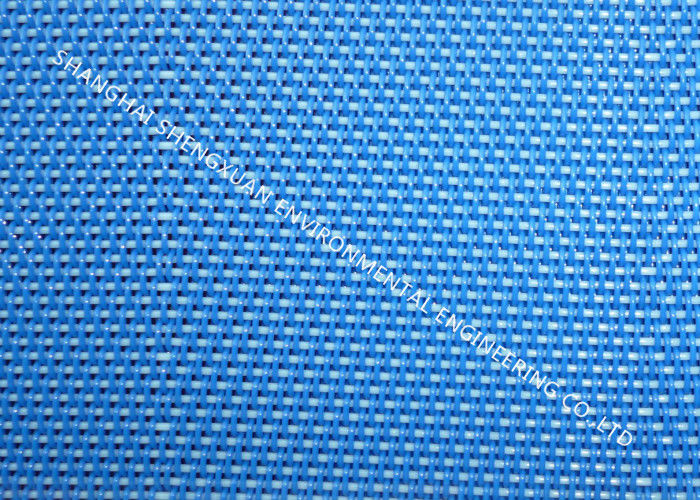

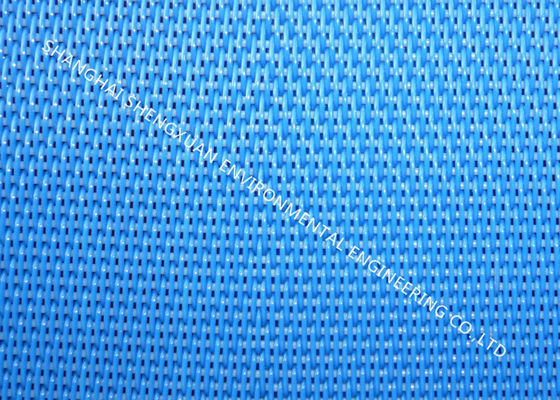

Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry

Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry
Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry

Large Image :  Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: 22504
Payment & Shipping Terms:
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: Roll form, pallet
Delivery Time: 10 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 meters per day
Detailed Product Description
Name: Polyester Dryer Filter Belt Material: PET Mono Filament
Thread Diameter: 0.3-0.7mm Weight: 0.5-3.0kgs
Supply Type: Make To Order Seam Type: Endless,spin
High Light:

polyester conveyor belt

,

polyester mesh fabric

Polyester monofilament Dryer Screen Conveyor Belt for food industry



1. Product Model:Polyester Dryer Screen Conveyor Belt

2. Quality: All goods will be tested by our professional QC team before balance payment and

shipping.

3. Payment: T/T, L/C, D/P, Western Union, Paypal, Escrow, Cash.

4. Samples: Samples for quality testing are available, about the sample fee and

freight,hoping we can understand with each other,sometimes sample is free of charge, but we

kindly ask you to pay for the freight.

5. Packing: Kraft paper or plastic blister film inner package, then paper box or wooden

cartons for outer package, try to save space to make compact package.

6. Shipping: Air Express, Sea Shipping and TNT,DHL,FEDEX,UPS,EMS

7. Warranty: 6 months quality warranty

8. Serivice: We have a best sales services team with rich experience , and will solve all the

problems for you now and in the future.



Product Polyester dryer belts
Material Polyester
Weave style Plain weave
Usage Filtering and sieving
Belt type Filter conveyor
Belt thickness 1.7-3.0mm
Dry belt length 60-80 meters according to your request
Dry belt width Max 9 meters



Instructions and Attentions

1. Open the package put the belt lay on the floor Check the dimension is the correct size you needed

2. Put one end of the belt along the running direction of the Filter and lead into the roller.

Following the Filter instructions put the belt goes through each roller.

Attention:"Cake Side”should be the touch side contact with the sludge.

The arrow direction shows correct belt running direction.

3. Align the two ends of belt,put the hinge pin through the seam from one end to the other.The hinge pin may have some obstruction when go through in the middle.You can use pincers clamp one end of hinge pin and help push forward to the other end.When you align the two ends make sure the contact two ends are in same width.

4. Bend two ends hinge pin back to the seam and clamping tight.

5. Take out the glue which send together with the package.Put the glue evenly into the seam and scrape the glue make sure the seam surface is flat and smoothly.Only running the belt after the glue is completely drying.

6. Following the Filter operation instructions,tight the belt and running the belt 4 to5 rounds with low speed.Make sure the belt no strange,and then you C an tur n up to the normal speed.

7. Belt running should away from the sunny skies condition.No sun exposure.

Gently handing when you moving the belts,Non-throwing,Non-rolling.Non dragging

Keep away from the strong acids,alkali and organic solvents when you store.


Heat Resistance Polyester Mesh Belt , Flat Surface Monofilament Mesh For Food Industry 0
