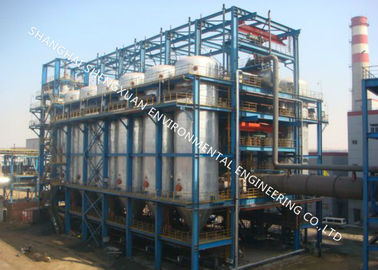

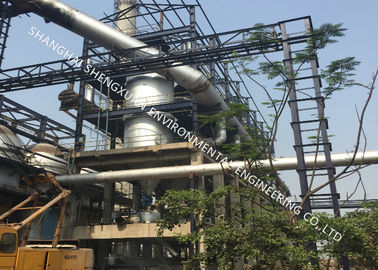

Gas Cleaning Dust Collection System 0.25 Mpa 320m3 Blast Furnace Dry GCP Plant

Gas Cleaning Dust Collection System 0.25 Mpa 320m3 Blast Furnace Dry GCP Plant
Gas Cleaning Dust Collection System 0.25 Mpa 320m3 Blast Furnace Dry GCP Plant Gas Cleaning Dust Collection System 0.25 Mpa 320m3 Blast Furnace Dry GCP Plant

Large Image :  Gas Cleaning Dust Collection System 0.25 Mpa 320m3 Blast Furnace Dry GCP Plant Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: Pressure test
Model Number: MCC 3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: SS frame
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 1 set per day
Detailed Product Description
BF Volume: 250-1080 M3 Material: Carbon Steel
Usage: Blast Furance Gas Cleaning Plant Pressure: 0.25 Mpa
Working Temp: 100-300 Degree C Application: Gas Cleaning
High Light:

pneumatic pulse valve

,

air pulse valve

320 m3 Blast furnace dry GCP plant industrial bag filter dust collector silos for gas cleaning





In iron and steel industry , blast furnace is the first choose to produce iron melts, during this process , it will come out lots of gas.

There were venture scrubbers and electric de-dusting system to filtering the gas in past years, but there was second pollution to water. In China market , after several years researched and practiced , then developed the pulse-jet cleaned system.

The general pressure of the BF plant gas is 0.08Mpa-0.14Mpa,the temp range 100-250 degree after cooling, the design for filter velocity range 0.3-0.6m/min, ash content 8Ng/Nm3-12Ng/Nm3.

Considering the explosion , the design for dust tube houses install explosion relief valve.

Filter media needs high temperature repellent non woven fabrics, the request of ash content after GCP less than 10mg/Nm3, even less than 3mg/Nm3 to 5mg/Nm3 in some applications, it is enough cleaning for the next process—TRT .

Different dust separation procedures require different weight and air permeability values for filter media.



The rule:

The more effective the cleaning process, the more compact and heavier the filter medium can be.

The high emission control standards, the heavier the filter medium should be.



Tip:

If these factors are well considered in advance, running costs like electricity for the fan or pressurized-air for the cleaning pluses can be saved later on in a great amount.



Spefication:

item SXMMCC3500
Media BF gas
Gas volume per silo(m3/h) 15000-24000
Operation temperature 250-350
Filter bag per silo 205
Bag size(mm) Dia130X6000
Filtration area(m2) 499.9
Velocity (m/m) 0.3-0.6
Pressure <2000
Inlet dust density g/Nm3 <10
Outlet dust density mg/Nm3 <5
Efficiency % >99.9%
Pulse pressure Mpa 0.2-0.4
Pulse time(S) 0.2

Outer DN

Dia 3524X16000
 Usage  Blast furnace gas cleaning system
