|Material:||Fiberglass Fiber+chemical Fibers||Scrim:||Fiberglass Woven High Tensile Strength|
|Bag Size:||DN 130x6000||Work Temp.:||100-300 Degree|
|Air Permeability:||15-30 M3/m2.m||Application:||Iron Making Plant|
|Name:||Dry GCP Gas Cleaning Filter Bag||Filtration Efficiency:||< 5mg/Nm3|
|Life:||18 Months||Treatment:||PTFE Dipping And Coating|
|BF Volume:||450m3||Plate Diameter:||135mm X 8mm Thickness|
|Filtration Area:||2.6 M2|
380m3 Dust Collector Filter Bags,
Dry GCP Dust Collector Bags,
Fiberglass Fiber Dust Collector Bags
The best choice for 350m3 India blast furnace dry gas cleaning filter bags DN 130X6000mm
Dry gas cleaning plant is a very efficient system used to clean the raw blast furnace gas .Dry GCP comprises of filter bags for filtering the dust from raw blast furnace gas and collect in duct silo by the use of different type of conveying and storage system.
FMS dry dust filter bag is the most suitable material used in blast furnace dry gas cleaning system which designed by Chinese MCC.
This kind fabric is needle punched by 3-4 fibers together, it has high temperature repellent, good air permeability, easy to take offer cake advantage. Now widely used in dry GCP system.
Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions.
The above filter bag will adopt different post-processing techniques according to the specific working conditions.
The detail description of filter medium
For reducing resistance of filter media, except the special technology for laying the fiber , we also choose different diameter fiber to process, let’s the fabric can be graded structure, on the fabric surface ,there is super fine fiber, to increase the fabric filtration precision ,anti-acid and alkali ,and en-length the life of fabric. In the actual application , the efficiency as same as membrane coating fabric , but resistance is more lower.
Nonwoven fabric cross section choose graded structure , fiber diameter from thin to thick, there are 4 layers, surface super fine fiber layer--super fine fiber---scrim—thick fiber layer. The fiber more thin, the ventilation channel more compact.
The special Applications
Blast furnace Dry GCP plant gas cleaning
Blast fuance volume: 250m3-5500m3
GCP plant : Dry
Dust silos No.s: 8-24 sets
Bag filter size: DN 130x6000mm& DN 160x8000mm length
Working temp.: 100-300 degree C
Life: 12-18 months
Customers: Sinosteel, MCC , JSW, Baosteel,JSPL, and so on.

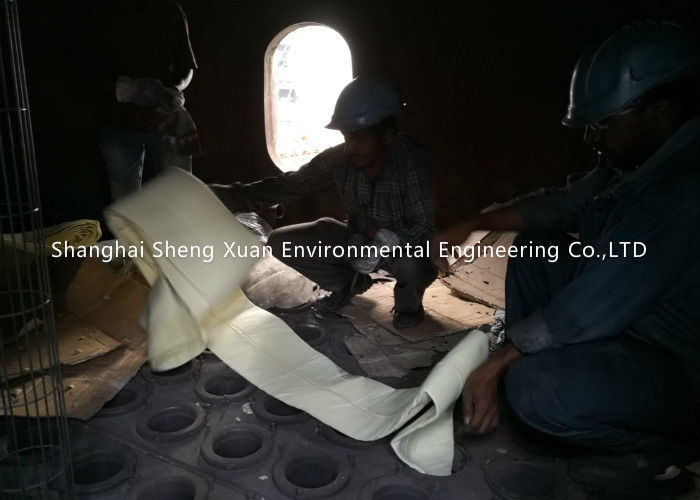

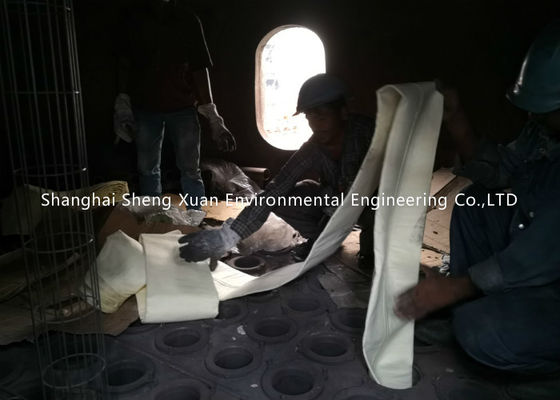

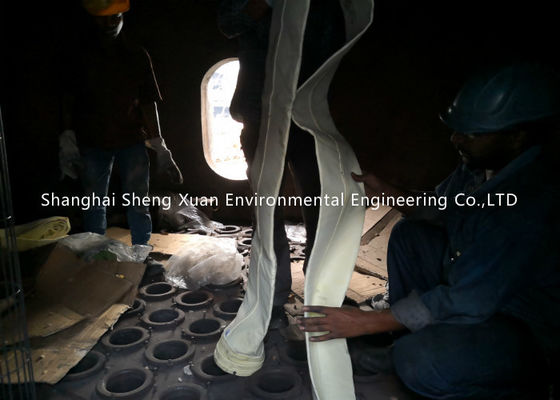

Provide bag installation service, equipped with special instruments and trained professionals.
Provide follow-up service, maintain and direct the operation during run time.
When problem occurs,we will go to site within 24 hours to survey ,analyze and solve the problem.
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Contact Person: Mr. Zhang
