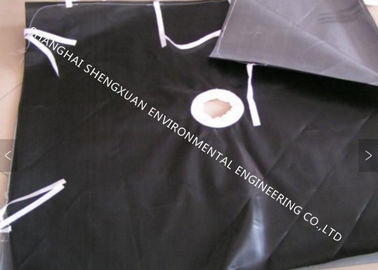

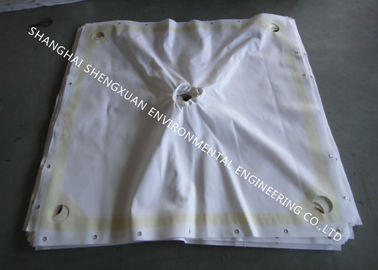

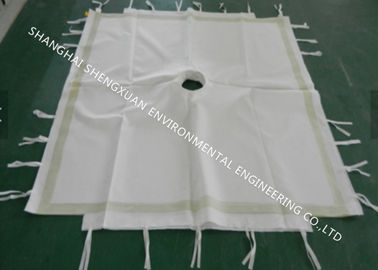

Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect

Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect
Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect

Large Image :  Fast Speed Press Filter Cloth , Weave PP Filter Cloth With Good Filtration Effect Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO 9001
Model Number: PP750
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Plastic knitting bags
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A
Supply Ability: 1000 sets per day
Detailed Product Description
Material: PP Multifilaments Size: 800X800,1100X1100mm, 1350X1350mm
Usage: Plate Filter Press Thickness: 1.2mm
Construction: Satin Application: Liquid Filtration
High Light:

filter press fabric

,

pp filter cloth


PP 750 industrial woven filter press fabrics




filter press fabrics can be used for plate and frame filter press, recessed (chamber) filter press, membrane filter press, etc. It has good filtration effect, dry filter cake, high tensile strength, fine filter cake release ability, etc.



Applications:
solid-liquid seperation in chemicals, petrol-chemical, metallurgy, mine, environment protection, pharmacy, powerstation, potash fertilizer, salt, dyestuff, pigment, food&drink, water&wastewater, etc.


In order to ensure the filter press fabrics tightness with filter plate, latex (glue) will be brushed. For filter cloth construction, we use velcro, banding, neck (butterfly type), metal hole, etc.




Specifiations



Model Breaking Strength Density Thickness Weight Air Permeability Weave pattern
(N/5*20cm) (root/10cm) (mm) (g/m2) L/m2.s
52l 2608/2050 214.8/150.8 0.79 302.7 216.5 Twill
522 2104/1633 244/173 0.41 155 73.44 Plain
534 2501/1894 193.6/100.0 0.99 368.1 41.2 Plain
4212 2672/1342 236.4/123.2 1.34 389.4 85.6 Twill
700A 3426.6/2819.4 204/106 0.7 350 117.9 Plain
700B 4648.0/2866.6 188/114 0.59 280 254.2 Twill
700AB 6865.4/416.7 378/235 1.15 580 82 Twill+Plain
750A(840A) 4466/2905 168/131 0.85 330 42 Plain
750B(840B) 5234/3489. 256/141 0.99 420 76 Twill
750AB(840AB) 6718/5421 333.8/204.4 1.36 489.9 24.5 Plain
840-1 5275/3948 252/146 0.9 440 45.5 Twill
840-2 5928/4086 283/142 1 490 40.7 Twill
840-3 6282/4858 311/134 1.1 520 27.2 Twill
858 4418/3618 251/124 0.88 380 240.7 Twill
4218 8568/5427 456/94 1.32 660 38.4 Twill
4422 2643/1514 181/94 1.18 480 17.86 Twill
1000A 5585.7/4089.2 204/102 0.85 435 9.83 Plain
1000B 6636/1481 204/110 0.79 430 21.49 Twill
1500-1 56283701 251118 1.42 725 29.38 Twill
108B 8721/4642 503/133 1.1 600 13.6 Double Twill
108C 8367/4797 504/177 1.03 600 22.96 Satin





Pacakage and Delivery

Carton box, plastic knitting bags,pallet
10 days
