Dust Collector Bags Heat - Resisting For Wasted Gas Filtration

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

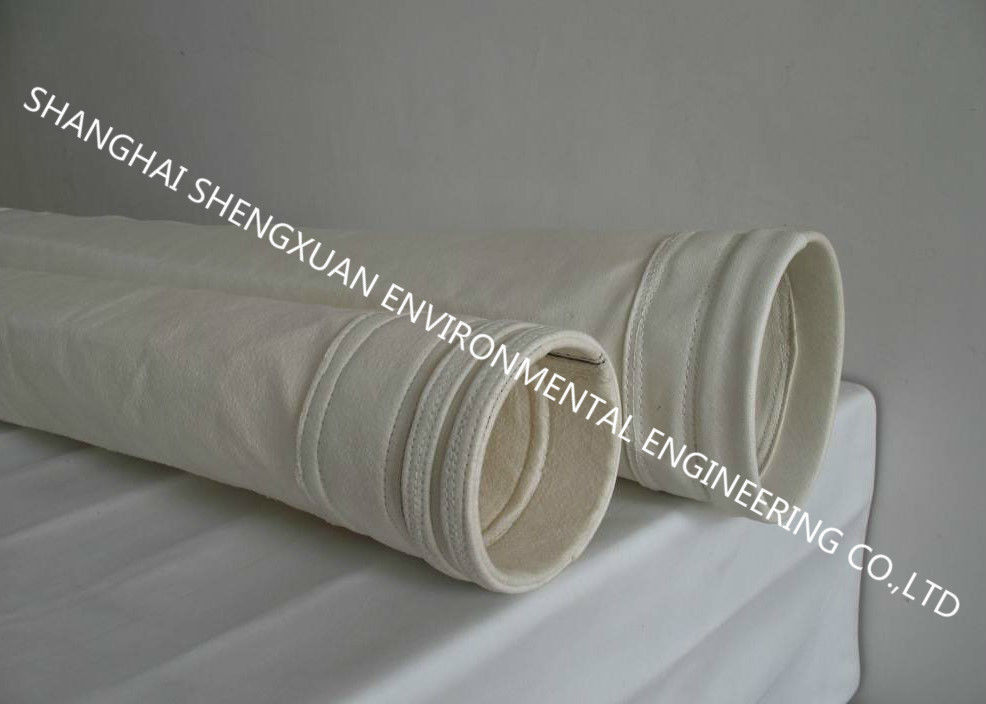

Dust Collector Bags Heat - Resisting For Wasted Gas Filtration

Dust Collector Bags Heat - Resisting For Wasted Gas Filtration
Dust Collector Bags Heat - Resisting For Wasted Gas Filtration Dust Collector Bags Heat - Resisting For Wasted Gas Filtration

Large Image :  Dust Collector Bags Heat - Resisting For Wasted Gas Filtration Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: PPS 550
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Pallet , Carton box,knitting bags
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per day
Detailed Product Description
Material: PPS Needle Punched Filter Fabric Scrim: 100% PPS Woven Fabric Scrim
Bag Size: DN 130x 6000 Mm Work Temp.: 130 Degree
Air Permeability: 15-30 M3/m2.m Application: All Kinds Dust Collector
Name: PPS Dust Filter Bag Filtration Efficiency: < 10 Mg/Nm3
Life: 36 Months Treatment: PTFE Dipping And Coating
High Light:

industrial dust collector bags

,

polyester filter bag

Waterproof Industrial Dust Collector Bags Heat - Resisting For Wasted Gas Filtration



PPS dust filter bag is made of 100% PPS needle punched filter felt, the virgin fiber which imported from USA and Japan, is the the leading varieties of the high temperature filter material, PPS dust filter bags performance excellence in the applications of the following situations.



1. The working temperature of 190 degree, short time working temp of 210 degree, the melting point is 285 degree C, The limiting oxygen index 34-35.

2. The oxygen content in the 15% or the same situation can be used.

3. The place of the flue gas containing moisture.



PPS spun fiber has the strength to keep the integrity and intrinsic chemical resistance, can maintain a good filter material in the dust treatment of filtering coal boiler, incinerator ash, dust processing and other pulse cleaning dust.

Item

Thickness

mm

Weight

g/m2

Work temp.

Air permeability

dm3/m2.s

Tensile strength

25mm/N

Warp/weft

Velocity

m/min

PPS service 1.9-2.1 550 160-190 15-30 1200 1000 1.2
PPS composite 1.9-2.1 550 160-190 15-30 1200 1000 1.2

Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions.

The above filter bag will adopt different post-processing techniques according to the specific working conditions.



How to choose the filter bag ?



The filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.



The Factors that affecting the selection of the filter medium



The Select Indication of the Filter medium



A. Temperature

B. Chemical Property

C. Concentration of the dust content

D. Filter Gas Speed



Dust Collector Bags Heat - Resisting For Wasted Gas Filtration 0

Dust Collector Bags Heat - Resisting For Wasted Gas Filtration 1



Test Item & Test Standard

SL.No. Item Test Standard
1 Area Weight FZ/T60003-91
2 Air Permeability GB/T5453-1997
3 Tensile Strength GB/T3923.1-2013
4 Elongation GB/T3923.1-2013
5 Burst GB/7742.1-2005
6 Liquid Repellent GB/4745-2012









Post Treatment For Filtering Materials



Singeing, calendaring,Heat setting

Water and oil repellent

PTFE Dispersion treatment

PTFE surface Coating treatment

Fire Retardant treatment



Package detail and Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days



Shipping way & Loading Port :



By sea / air / express



Shanghai / Ning Bo/Tianjin



Applications:

Steel,Metallurgy,Cement,Carbon black,Thermal Power,Asphalt mixing, waste incineration.



Technical Service &support



Provide Solutions

Offer further technical support with extensively qualified experience

Provide Senior Technical staff for on site technical support

Professional Recommendations on dust collector operation and maintenance

Professional Supervision of filter bag installation

Laboratory analysis of the condition of used filter bags and recommended solutions for optimum performance

Analysis of filter bag life and recommendations of replenishment programs
