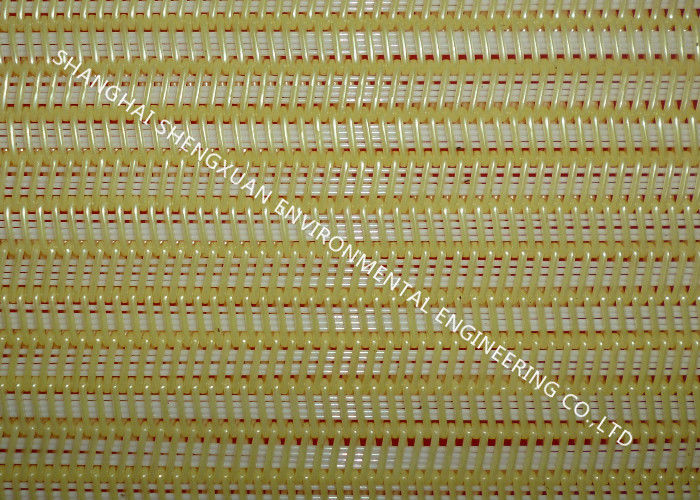

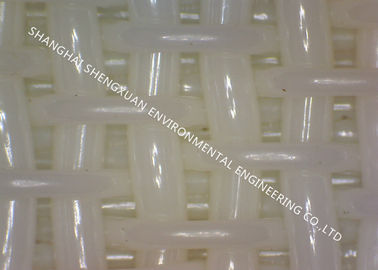

Coal Industries Polyester Mesh Belt , Polyester Dryer Net In Spiral Weaving

Coal Industries Polyester Mesh Belt , Polyester Dryer Net In Spiral Weaving
Coal Industries Polyester Mesh Belt , Polyester Dryer Net In Spiral Weaving Coal Industries Polyester Mesh Belt , Polyester Dryer Net In Spiral Weaving

Large Image :  Coal Industries Polyester Mesh Belt , Polyester Dryer Net In Spiral Weaving Get Best Price

Product Details:
Place of Origin: Made in China
Brand Name: Austin Filter
Certification: ISO
Model Number: G-048
Detailed Product Description
Features: Heat Resistance Material: PET Monofilament
Structure: Belt Type Hole Shape: Spiral Loop
Width: 1-5 Meters Thickness: 1.7-3mm
High Light:

dewatering conveyor belts

,

polyester conveyor belt

Polyester spiral dryer net in spiral weaving for coal industries





Feature:

1. Heat resistance: 250C
2. Best working temp: under 180C
3. Strength
4. Flat surface
5. Good air permeability
6. Stable property against heat and moisture
7. Low thermal shrinking, less elongation at heat
8. Resistant to most acids and organic solvents Safe for food processing



Polyester Spiral Press Filter Mesh Belt
Weaving Type Model

Thread Diameter

(mm)



Air Permeability

(m3/m2h)

Warp Weft filled with stuff
Large Loop 4070 0.9 1.1 0.9x4 20000x500
0.9x5
Medium Loop 3868 0.7 0.9 0.8x3 18500x500
0.8x4
Small Loop 3252 0.52 0.7 0.68x3 15000x500



Instructions and Attentions

1. Open the package put the belt lay on the floor Check the dimension is the correct size you needed

2. Put one end of the belt along the running direction of the Filter and lead into the roller.

Following the Filter instructions put the belt goes through each roller.

Attention:"Cake Side”should be the touch side contact with the sludge.

The arrow direction shows correct belt running direction.

3. Align the two ends of belt,put the hinge pin through the seam from one end to the other.The hinge pin may have some obstruction when go through in the middle.You can use pincers clamp one end of hinge pin and help push forward to the other end.When you align the two ends make sure the contact two ends are in same width.

4. Bend two ends hinge pin back to the seam and clamping tight.

5. Take out the glue which send together with the package.Put the glue evenly into the seam and scrape the glue make sure the seam surface is flat and smoothly.Only running the belt after the glue is completely drying.

6. Following the Filter operation instructions,tight the belt and running the belt 4 to5 rounds with low speed.Make sure the belt no strange,and then you C an tur n up to the normal speed.

7. Belt running should away from the sunny skies condition.No sun exposure.

Gently handing when you moving the belts,Non-throwing,Non-rolling.Non dragging

Keep away from the strong acids,alkali and organic solvents when you store.
