750 Series PP Woven Filter Press Clothes For High Temperature Working Conditions

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

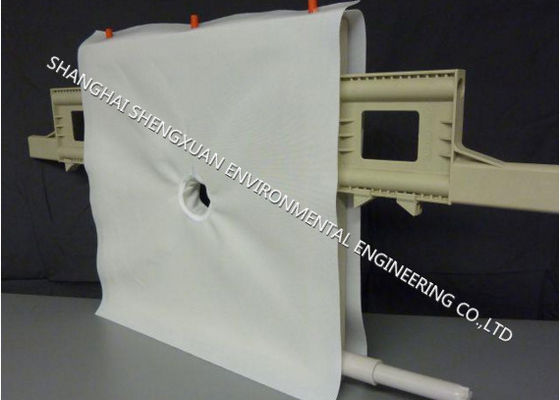

750 Series PP Woven Filter Press Clothes For High Temperature Working Conditions

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  750 Series PP Woven Filter Press Clothes For High Temperature Working Conditions Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: AUSTIN FILTER
Certification: ISO9001-2008
Model Number: 750AB
Payment & Shipping Terms:
Minimum Order Quantity: 10 SETS
Price: Negotiable
Packaging Details: Boxes
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 sets per day
Detailed Product Description
Name: Press Filter Fabrics Material: PP Multifilament Fiber
Construction: Industrial Heave Weave Pattern: Plain
Weight: 550gsm Work Temp: Less Than 90 Degree C
High Light:

filter press fabric

,

pp filter cloth

750 series PP woven industrial press filter fabrics for filtration





Polypropylene industrial pressure filter fabrics series:
It can be divided in to PE staple fiber filter cloth,
PP multifilament (long thread)filter cloth ,
PP monofilament filter cloth ,
PP multifilament/monofilament filter cloth .
Properties of PE filter cloth: Anti Acid,
Anti weak Alkali,
oxygenation resistant
high tensile strength,
moisture resistant,
suite high temperature working conditions





Main Applications :
Dedusting ,Separation in solid and liquid to equip with filter press ,conveyor belts filtration ,Vacuum filter ,in Chemical industry ,food and beverage ,metallurgy ,Pharmacy ,Building ,Mining Industry and so on .





Representative products :
Thinner filter cloth: 747,758,729,208,130,240,260
Thicker and with higher density :3014,3927,4030,822,3010,621,F625
Crossing weave filter cloth :903,3751,3850




Note : We can weave different Denier fiber/yarn into different weaving (plain ,twill ,satin ) to form different filter efficiency and requirement from different customers ,also we can make as offered sample of filter cloth!





Model Breaking Strength Density Thickness Weight Air Permeability Weave pattern
(N/5*20cm) (root/10cm) (mm) (g/m2) L/m2.s
52l 2608/2050 214.8/150.8 0.79 302.7 216.5 Twill
522 2104/1633 244/173 0.41 155 73.44 Plain
534 2501/1894 193.6/100.0 0.99 368.1 41.2 Plain
4212 2672/1342 236.4/123.2 1.34 389.4 85.6 Twill
700A 3426.6/2819.4 204/106 0.7 350 117.9 Plain
700B 4648.0/2866.6 188/114 0.59 280 254.2 Twill
700AB 6865.4/416.7 378/235 1.15 580 82 Twill+Plain
750A(840A) 4466/2905 168/131 0.85 330 42 Plain
750B(840B) 5234/3489. 256/141 0.99 420 76 Twill
750AB(840AB) 6718/5421 333.8/204.4 1.36 489.9 24.5 Plain
840-1 5275/3948 252/146 0.9 440 45.5 Twill
840-2 5928/4086 283/142 1 490 40.7 Twill
840-3 6282/4858 311/134 1.1 520 27.2 Twill
858 4418/3618 251/124 0.88 380 240.7 Twill
4218 8568/5427 456/94 1.32 660 38.4 Twill
4422 2643/1514 181/94 1.18 480 17.86 Twill
1000A 5585.7/4089.2 204/102 0.85 435 9.83 Plain
1000B 6636/1481 204/110 0.79 430 21.49 Twill
1500-1 56283701 251118 1.42 725 29.38 Twill
108B 8721/4642 503/133 1.1 600 13.6 Double Twill
108C 8367/4797 504/177 1.03 600 22.96 Satin
