4 Ply Solid Weave Air Slide Cloth Permeable Customized For Industrial Conveyor

I'm Online Chat Now
We always choose Austin Filter mark, High temperature Nomex air slide belt and polyester air slide for our Transport silos.

—— Lafarge cement Indo

Austin Filter is our first choice for our BF1,BF2 and BF3 gas cleaning dry filter bags, DN130X6000mm FMS filter bags is the best in China.

—— Baosteel

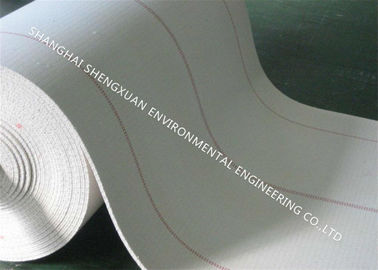

4 Ply Solid Weave Air Slide Cloth Permeable Customized For Industrial Conveyor

4 Ply Solid Weave Air Slide Cloth Permeable Customized For Industrial Conveyor
4 Ply Solid Weave Air Slide Cloth Permeable Customized For Industrial Conveyor 4 Ply Solid Weave Air Slide Cloth Permeable Customized For Industrial Conveyor

Large Image :  4 Ply Solid Weave Air Slide Cloth Permeable Customized For Industrial Conveyor Get Best Price

Product Details:
Place of Origin: Made In China
Brand Name: Austin Filter
Certification: ISO
Model Number: PET4-8mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 meters
Price: Negotiable
Packaging Details: Roll form, 50 meters per roll, Pallet
Delivery Time: 15 days
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 500 meters per day
Detailed Product Description
Material: Polyester Spun Fiber Yarn,filament Yarn Construction: 4 Ply Solid Weave
Weight: 3.5-7.5 Kg/m2 Width: 270,330,450,550,900mm
Air Peremabiltiy: 3.2-10 M3/m2/m Application: Cement Silos
Materia: Polyeste Temperature: 150
Material Feature: Heat Resistant Warranty: 1 Year
Dimension Wilde: 270mm/330mm/400mm/500mm/700mm
High Light:

air slide fabric

,

air slide belt

Polyester pneumatic air slide conveyor fabrics for cement plant



Air slide fabric is also named Air slide canvas, Air slide belt fabric, Complete set aero cloth,air slide fabrics, air slide fabric, Solid Woven Air Slide Material, Air permeable fabric, Pneumatic conveyor belt,Aeration pad, Fabrics for air slides.



Depending on the customer`s request, we can offer air slide fabric made of different raw materials, in various grades of airpermeability and thickness, depending on the application



Parameters

Item Air slide fabric, air slide belt, conveyor belts, canvas belt,aeration pads
Material Polyester spun, filament, Nomex
Thickness 4mm,5mm,6mm,8mm,10mm
Weight (g/m2) 3500-7000
Width 250,270,330,450,500550,1200,max to 2200mm
Air permeability 3-20 m3/m2/min
Breaking strength(N/mm) > 5000N
Operating temp. 130-400 Deg C



When powder transfering, the air slide fabric combined with pressed air in flume make the dry powder become to fluid particles, so the equipment won't be damaged from abrasion, can reduce many repair works. Further more, for the particles be transferred in air tight flume, they won't lost when transferred, it can help to save the cost, and won't pollute the environment.



Our service



1. Enquiries quickly reply within 24 hours.



2. After-sales service, rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours. We can arrange professional engineers arrived at equipment location within 48 hours.



Package

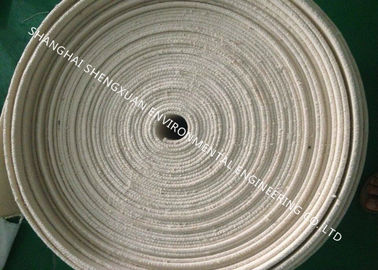

Roll form, 50 meters per pkgs, pallet.



Delivery time



Stock fabric in 2 days

Sample test in 1 day

Standard order 15 days
